1C-G3/P3. Cubic Déco Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
Housing:

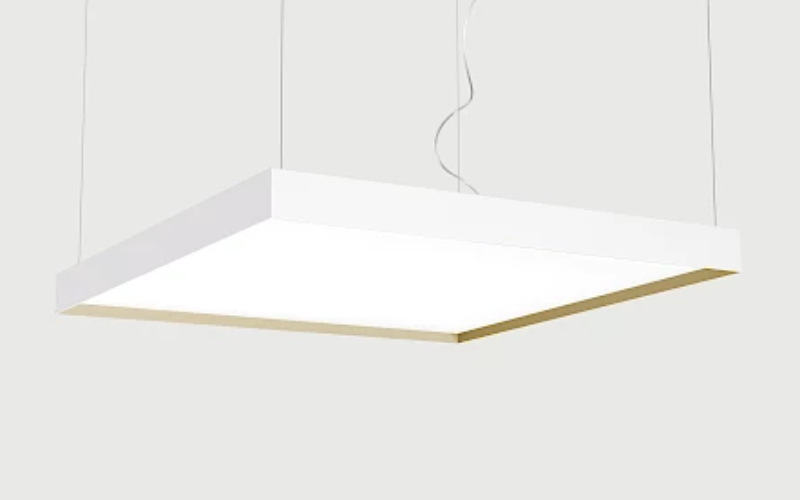

Extruded Aluminum. LED pendant luminaire. Direct-indirect or direct-only light distribution. Fully enclosed and damp rated.
Optical System:
Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Outer housing and Decorative trim available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L90/50000h.
Installation:
Height-adjustable parallel cord suspension with transparent power supply cable. Color of canopy match to luminaire body.
Certification & Warranty:
Pending ETL. 5 Years Warranty.
Extruded Aluminum. LED pendant luminaire. Direct-indirect or direct-only light distribution. Fully enclosed and damp rated.
Optical System:
Recessed microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Outer housing and Decorative trim available in various finishes and combinations, e.g. white, silver, graphite, black, gold or copper coated. For surface options and combinations check Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L90/50000h.
Installation:
Height-adjustable parallel cord suspension with transparent power supply cable. Color of canopy match to luminaire body.
Certification & Warranty:
Pending ETL. 5 Years Warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.875"20.875"24.75"35.375"47.25"L: 16.875"20.875"24.75"35.375"47.25"H: 3.875"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K6500KTunable White
- CRI80 90
- Watt(Approx)19 W30 W27 W40 W44 W42 W50 W68 W65 W67 W78 W89 W103 W129 W122 W161 W152 W228 W273 W
- Lumens(Approx)2370 Lm2440 Lm4360 Lm3450 Lm4430 Lm3550 Lm3630 Lm3740 Lm6300 Lm6400 Lm6000 Lm6790 Lm6110 Lm6990 Lm5200 Lm5360 Lm9610 Lm8500 Lm9770 Lm8760 Lm7910 Lm8150 Lm11170 Lm11370 Lm14270 Lm14530 Lm11660 Lm13240 Lm11900 Lm13640 Lm14100 Lm14520 Lm18570 Lm18970 Lm19310 Lm19730 Lm23550 Lm24260 Lm30990 Lm31700 Lm
- OpticsDirectDirect/IndirectGeneral DiffusedBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
