Lightnet

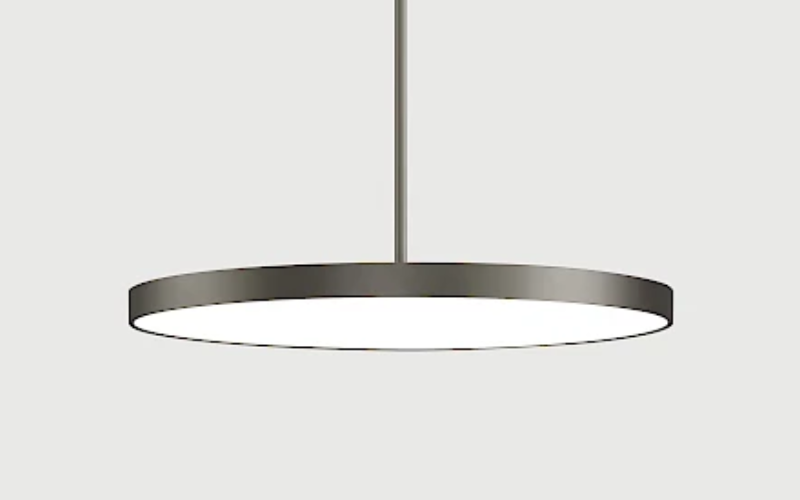

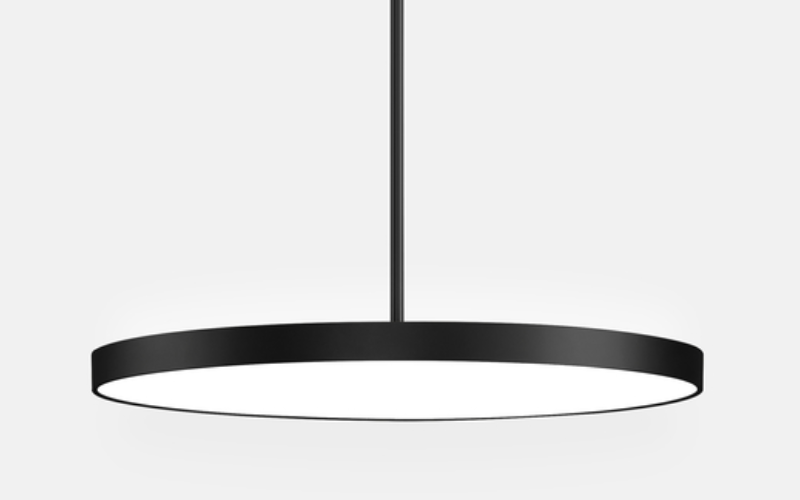

1B-G5/P5. BASIC NEO SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
Housing:
Extruded Aluminum. LED pendant luminaire with minimal overall height of 1.5" without additional spacers. Direct-Indirect or Direct only light distribution. Fully enclosed.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Surface silver, white, graphite, black, or champagne coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L90/50000h.
Installation:
Height-adjustable central cord suspension with transparent power supply cable or rod suspension. Canopy and rod suspension finish matches luminaire body.
Certification & Warranty:
cETLus.
5 Years Warranty
Extruded Aluminum. LED pendant luminaire with minimal overall height of 1.5" without additional spacers. Direct-Indirect or Direct only light distribution. Fully enclosed.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Surface silver, white, graphite, black, or champagne coated. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Medium or High Power. Custom lumen output upon request. Lifetime L90/50000h.
Installation:
Height-adjustable central cord suspension with transparent power supply cable or rod suspension. Canopy and rod suspension finish matches luminaire body.
Certification & Warranty:
cETLus.
5 Years Warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 11.75"15 3/4"19 11/16"23 5/8"31.5"L: 11.75"15 3/4"19 11/16"23 5/8"31.5"H: 1.5"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K6500KTunable White
- CRI80 90
- Watt(Approx)7 W11 W12 W18 W16 W23 W25 W21 W28 W40 W31 W42 W60 W63 W54 W81 W
- Lumens(Approx)690 Lm700 Lm1210 Lm1220 Lm1190 Lm1200 Lm1490 Lm2070 Lm2080 Lm2280 Lm2960 Lm2580 Lm3940 Lm3460 Lm3630 Lm5280 Lm5160 Lm5620 Lm7750 Lm8140 Lm7150 Lm10600 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeG5-P5
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
