Lightnet
1R-G1/P1. Ringo Star Acoustic System 4'' Suspended.
Configure
Add to project
RESOURCES
DESCRIPTION
Housing:

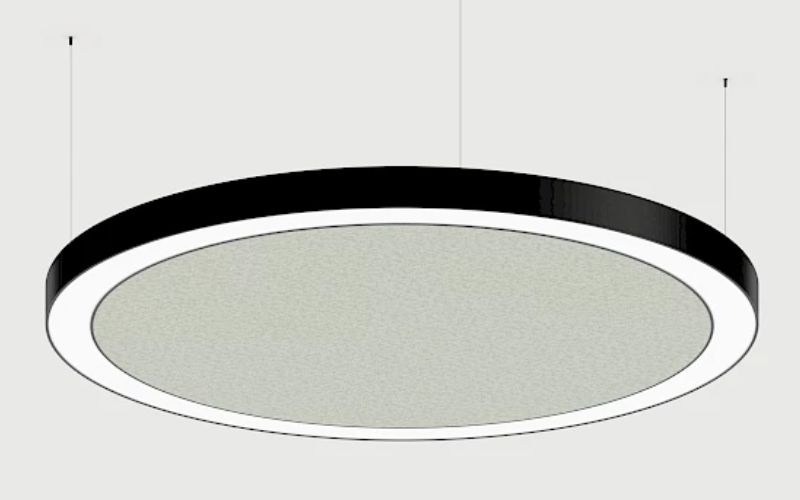

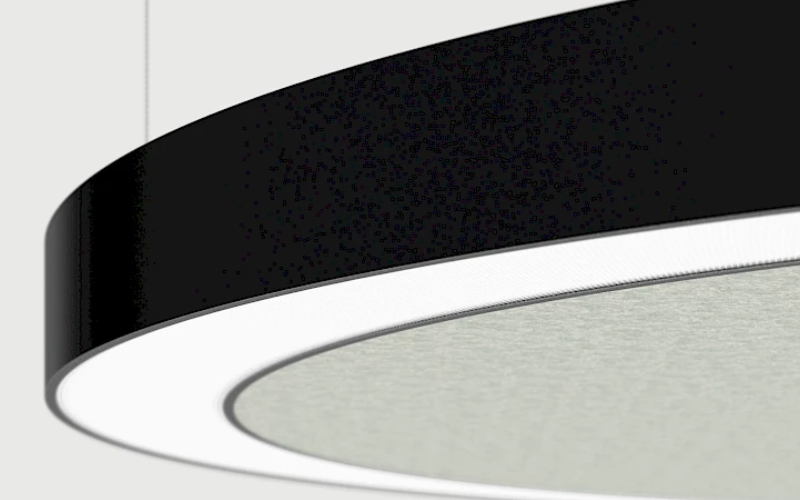

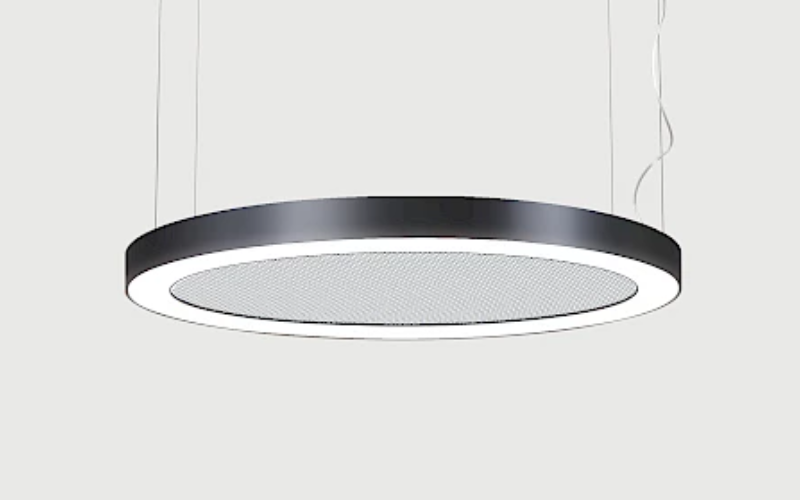

Extruded Aluminum. LED pendant luminaire made with 2.375"profile width. Direct-Indirect or Direct only light distribution with separate compartments. 5 different diameters from 2' to 7'. Fully enclosed and damp rated.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Surface white, silver, graphite, black, champagne, or copper coated. For further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice. Internal sound absorber for a wide frequency spectrum, to reduce the reverberation time. Acoustic insert is available in various colors of ecologically reared sheep’s wool, microperforated steel to match the luminaire.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low or Medium Power. Lifetime L90/50000h.
Installation:
Height-adjustable central cord suspension, parallel cord suspension with transparent power supply cable. Canopy finish matches luminaire body.
Certification & Warranty:
Pending ETL. 5 Years Warranty.
Extruded Aluminum. LED pendant luminaire made with 2.375"profile width. Direct-Indirect or Direct only light distribution with separate compartments. 5 different diameters from 2' to 7'. Fully enclosed and damp rated.
Optical System:
Microprismatic screen with optimized glare reduction especially for workplaces. Satin opal diffuser for general lighting with maximum transmittance and homogeneous lighting.
Surface Finish:
Surface white, silver, graphite, black, champagne, or copper coated. For further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice. Internal sound absorber for a wide frequency spectrum, to reduce the reverberation time. Acoustic insert is available in various colors of ecologically reared sheep’s wool, microperforated steel to match the luminaire.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K, or Tunable White. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3-step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low or Medium Power. Lifetime L90/50000h.
Installation:
Height-adjustable central cord suspension, parallel cord suspension with transparent power supply cable. Canopy finish matches luminaire body.
Certification & Warranty:
Pending ETL. 5 Years Warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.6"35.4"47.3"59"78.8"L: 23.6"35.4"47.3"59"78.8"H: 3.4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K6500KTunable White
- CRI80 90
- Watt(Approx)34 W45 W59 W75 W99 W79 W98 W95 W128 W134 W131 W120 W162 W218 W174 W169 W168 W299 W298 W
- Lumens(Approx)3850 Lm4880 Lm4140 Lm6570 Lm5240 Lm7580 Lm8800 Lm8060 Lm7870 Lm7050 Lm9450 Lm8660 Lm12500 Lm10070 Lm11100 Lm14800 Lm10400 Lm13360 Lm13000 Lm10430 Lm11930 Lm11150 Lm14350 Lm16300 Lm16900 Lm18700 Lm16950 Lm17500 Lm15900 Lm21230 Lm29130 Lm22240 Lm28300 Lm22100 Lm23000 Lm29300 Lm20100 Lm38670 Lm30200 Lm40000 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRINGO-G1-P1-A
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
