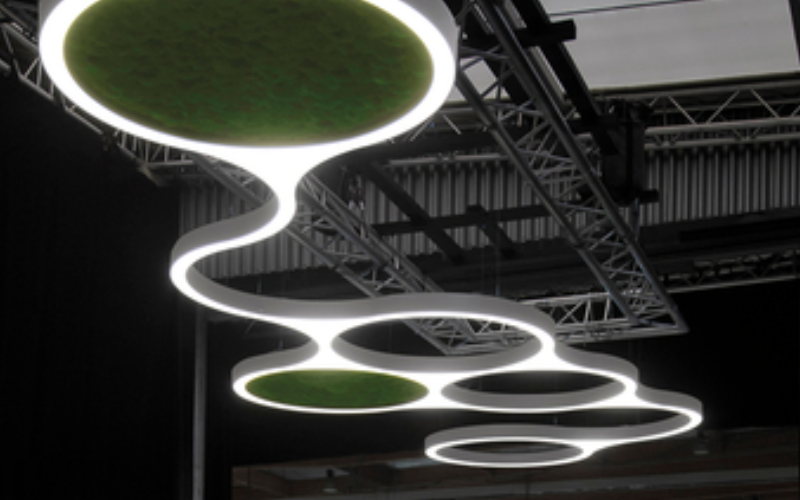

1R-G3/P3. RINGO STAR CLUSTER SUSPENDED.
Configure
Add to project
RESOURCES
DESCRIPTION
Housing:
Extruded Aluminum. LED pendant light system. Direct-Indirect or Direct only light distribution. Lighting system with various combinations of the different X, Y and circular modules, each module available as stand-alone luminaire. Custom diameters upon request. Entirely compatible with all Liquid Line G3/P3 modules. Fully enclosed and damp rated.
Optical System:
Satin opal diffuser for general lighting.
Surface Finish:
Available in white, silver, graphite, black, champagne or copper coated as standard. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice. Optional internal acoustic absorber suitable for wide frequency spectrum, made from ecologically reared sheep’s wool.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3 -step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low or Medium Power. Lifetime L90/50000h.
Installation:
Canopy with transparent power supply cable to be ordered separately for each complete light structure. Colors canopy match to luminaire body.
Certification & Warranty:
cETLus. 5 Years Warranty.
Extruded Aluminum. LED pendant light system. Direct-Indirect or Direct only light distribution. Lighting system with various combinations of the different X, Y and circular modules, each module available as stand-alone luminaire. Custom diameters upon request. Entirely compatible with all Liquid Line G3/P3 modules. Fully enclosed and damp rated.
Optical System:
Satin opal diffuser for general lighting.
Surface Finish:
Available in white, silver, graphite, black, champagne or copper coated as standard. Further surface options see Lightnet-Surface-Collection. RAL or PANTONE of your choice. Optional internal acoustic absorber suitable for wide frequency spectrum, made from ecologically reared sheep’s wool.
Control:
Integral electronic driver dimmable 0-10V. Minimum dimming level 1%. Field replaceable. On request: DALI, DMX, Lutron, Casambi.
LED:
Available color temperatures: 2200K, 2700K, 3000K, 3500K, 4000K, 6500K. All color temperatures available in CRI>80 or CRI>90. Optionally FULL SPECTRUM-LEDS for highest Fidelity Levels (Tm30). Tolerance within a 3 -step MacAdam ellipse. Up to 110lm/W efficacy. Choice of different lumen output levels: Low or Medium Power. Lifetime L90/50000h.
Installation:
Canopy with transparent power supply cable to be ordered separately for each complete light structure. Colors canopy match to luminaire body.
Certification & Warranty:
cETLus. 5 Years Warranty.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 39.375"L: 39.375"H: 3.375''
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K6500K
- CRI80 90
- Watt(Approx)8 W11 W12 W16 W24 W28 W22 W29 W23 W35 W34 W36 W32 W33 W46 W50 W41 W44 W45 W57 W55 W70 W66 W86 W81 W
- Lumens(Approx)650 Lm920 Lm950 Lm1330 Lm1310 Lm1910 Lm1960 Lm2520 Lm2760 Lm2610 Lm2790 Lm2870 Lm3840 Lm3570 Lm4010 Lm3260 Lm3920 Lm3820 Lm4770 Lm5270 Lm6710 Lm5520 Lm5450 Lm5740 Lm7610 Lm9700 Lm8020 Lm
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Non-Dim0-10V
- Controls/Network
- Power/Voltage
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETL
- Environment
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRINGO-G3-P3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
