Liron Lighting

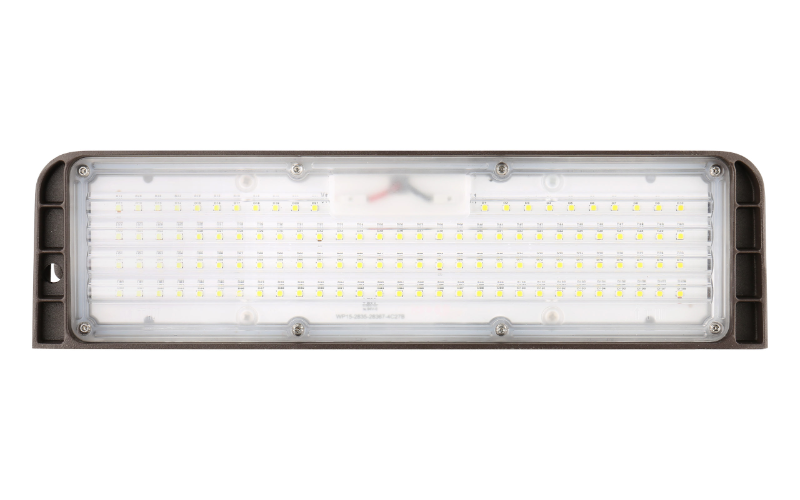

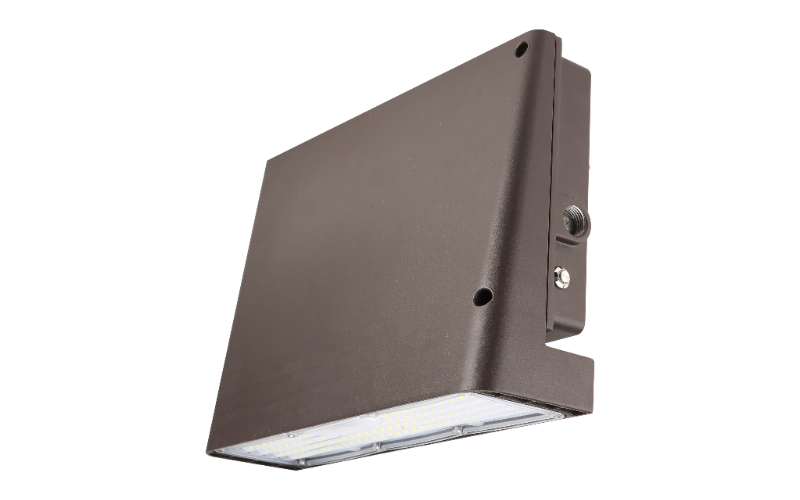

FCWP3. Wall Pack Slim Full Cutoff.
Configure
Add to project
RESOURCES
DESCRIPTION
- Limited Warranty: 10 years
- Wattage selectable :
100W/84W/62W/42W (FCWP3L)
- Color Temperature: 3CCT color temperature adjustable 3000K/4000K/5000K
- Efficacy: Up to 151 LPW
- Lumen output: 2,454lm – 14,500lm
- 1-10V Dimmable
- Optional accessories: Internal photocell & internal emergency battery
- Premium DLC 5.1
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.8"L: 13.1"H: 9.6"
- Light SourceLED
- CCT/Color3000K4000K5000KField Select CCT
- CRI80
- Watt(Approx)16-65 Wswitchable
- Lumens(Approx)2300-9800 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULDLC*
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCWP3
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
