Landscape Forms
DZ 100. Moment Area Light.
 Configure
 Add to project
DESCRIPTION

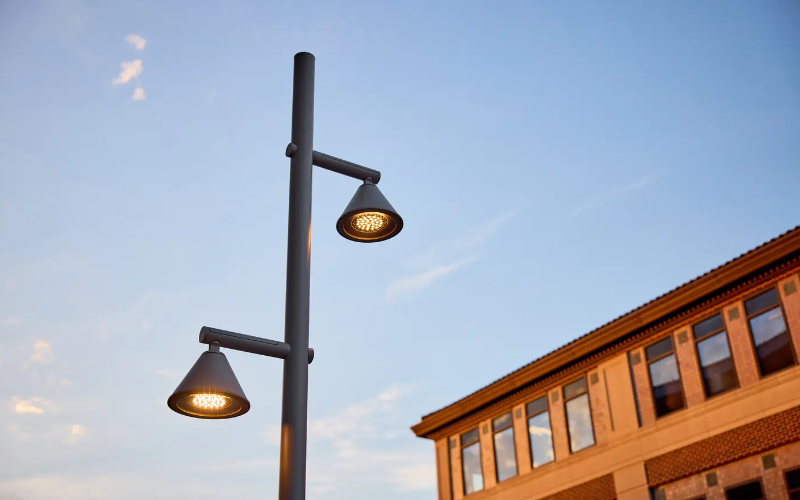

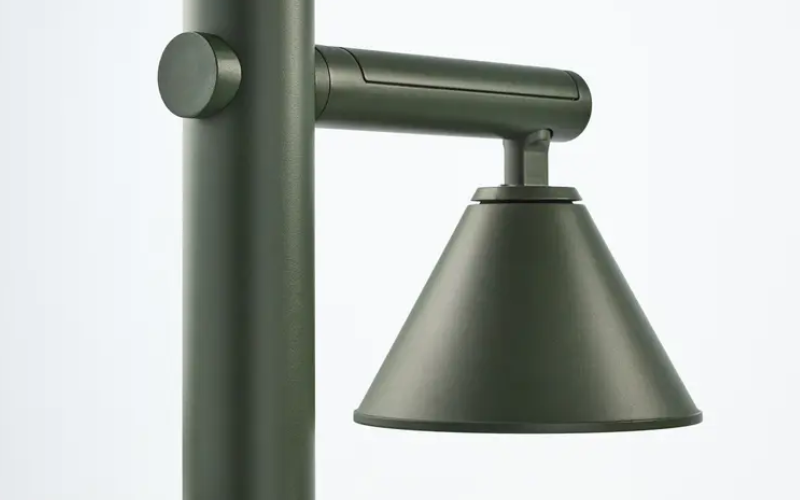

Moment area light merges sleek modernism with robust functionality. The modern geometry of the luminaires themselves embody innovations in design, performance, and visual experience, with distribution, color temperature, and output available in multiple configurations. Lens heights at 12, 14, 16, 20, and 25 feet provide maximum flexibility, with the mounted luminaries offered in single, back-to-back, or spiral variations.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 15"
    L: 23”
    H: 12 Ft14 Ft16 Ft20 Ft25 Ft
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K
  • CRI
    80
  • Watt(Approx)
    20 W44 W61 W83 W
  • Lumens(Approx)
    2553 Lm2291 Lm4605 Lm5121 Lm6734 Lm7501 Lm9747 Lm8751 Lm
  • Optics
    DirectType IType IIType IIIType IVType V
  • Adjustable
    Adjustable
  • Dimming
    Dim to 3-10%0-10V
  • Controls/Network
    Integral Sensor
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    60000 h
  • Certificates
    UL/CULDark SkyRoHS
  • Environment
    IP66
  • Mounting Type
    Pole/Mast Arm
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
