Landscape Forms
GUxP. Gunnar Area Light.
Configure
Add to project




RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

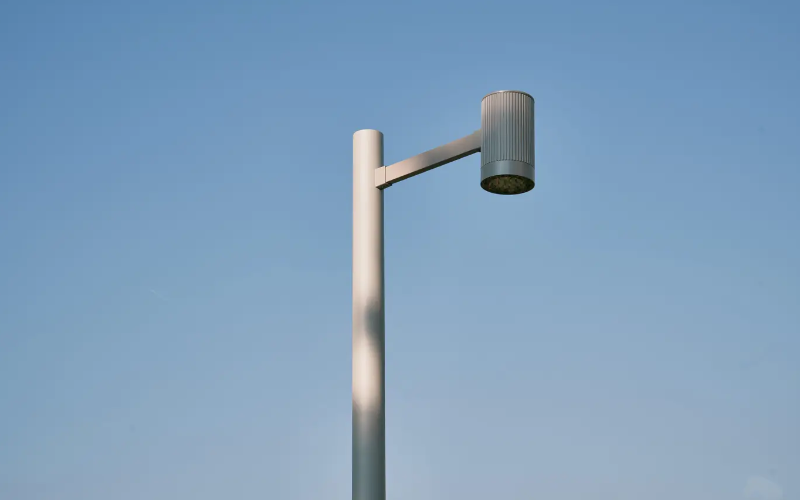

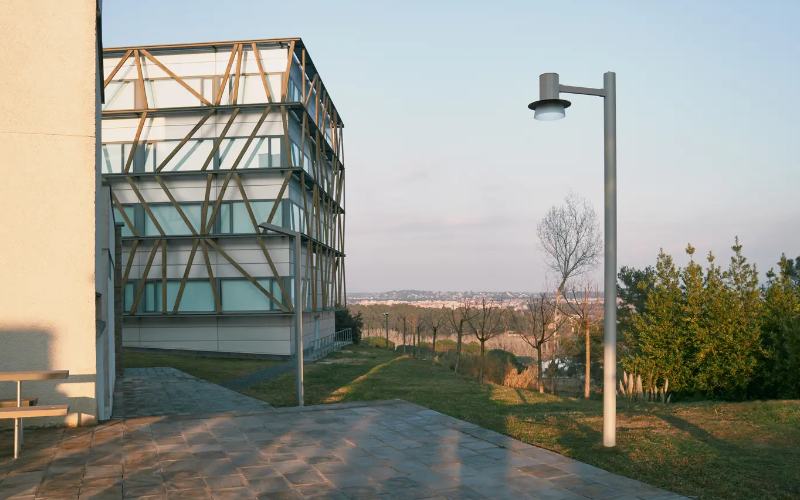

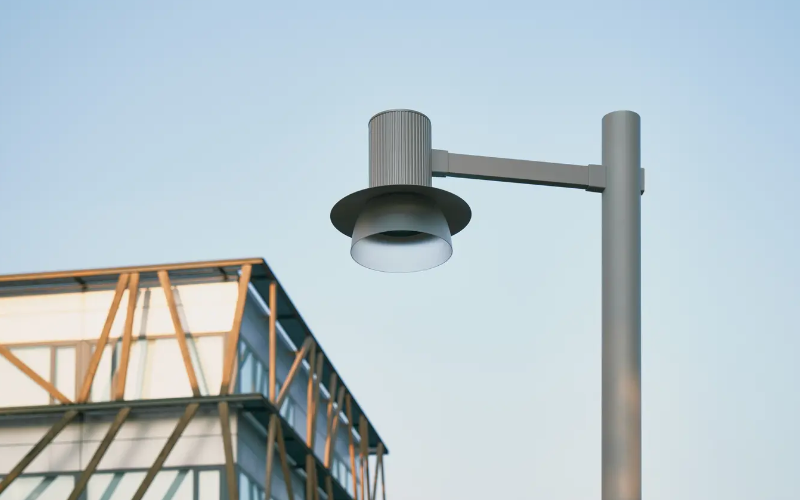

Gunnar is a unique floodlight system with functionality as versatile as its universally modern aesthetic. Its fluted form is inspired by the work of neoclassical Swedish architect Gunnar Asplund, bridging traditional and contemporary design language. The area light mounts up to four projectors per single pole, providing myriad options for layered lighting in outdoor architectural and urban environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7"L: 7"H: 12'14'16'20'
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)15 W20 W21 W29 W40 W
- Lumens(Approx)1195-1514 Lm1617-2047 Lm1882-2383 Lm2209-2797 Lm2552-3355 Lm3447-4364 Lm
- OpticsDirectMediumFloodWide FloodSpotType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%0-10VDALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDark SkyRoHS
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
