Lithonia Lighting (Acuity Brands Lighting)

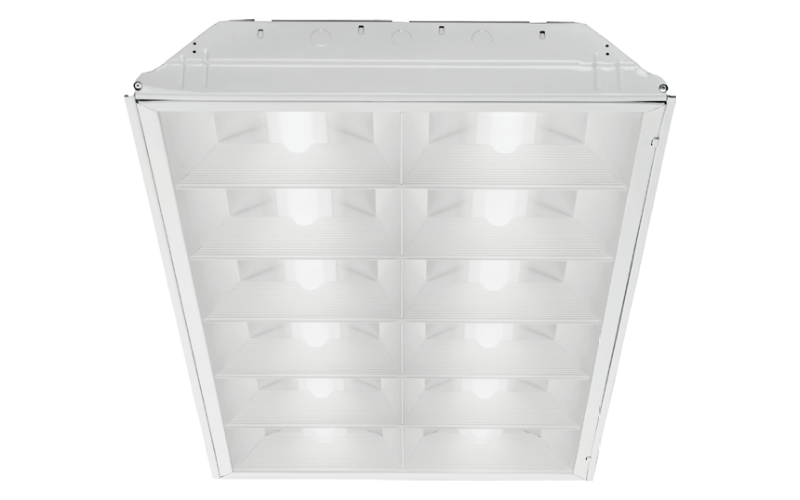

2ESL4. ESL Series Premium High-Performance Lighting 2'X4' LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The ESL Series offers a high-performance LED energy-saving alternative to fluorescent and parabolic fixtures. Using advanced LEDs and superior luminaire design, the ESL delivers even illumination and reduced glare, while eliminating numerous expensive lamp changes. Multiple lumen packages, an eldoLED driver, and optional nLight® integrated controls provide exceptional value; ideal for retail, educational, and commercial applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI82
- Watt(Approx)24 W30 W34 W37 W50 W51 W
- Lumens(Approx)3364 Lm4206 Lm4641 Lm5033 Lm6404 Lm7532 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Step DimNon-DimeldoLED ECO 0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADLC*BAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 11/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time2ESL4
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
