Lithonia Lighting (Acuity Brands Lighting)

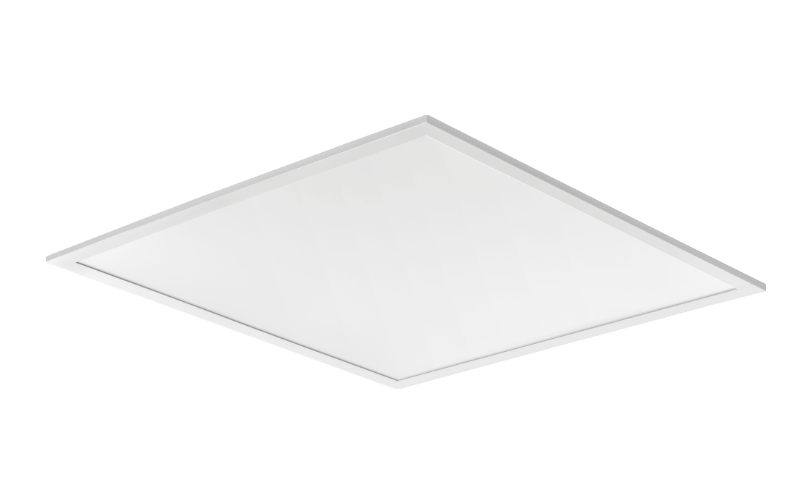

CPX. Non-Configurable LED PANEL 1' x 4', 2' x 2' and 2' x 4'.
Configure
Add to project
RESOURCES
DESCRIPTION
CPX™ from Lithonia lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. The configurable CPX sets the bar for what a standard panel can do. This CPX offers options for factory installed emergency battery packs, pre-wired single and dual whips, an A12 prismatic lens for even better glare control, 1% dimming, and wireless single-room lighting controls through SensorSwitch™ JOT. CPX is the perfect choice for budget-conscious schools, commercial office, and retail footprint projects.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 FtH: 1.7"
- Light SourceLED
- CCT/Color4000KField Select CCT
- CRI80
- Watt(Approx)38.9 Wswitchable
- Lumens(Approx)4692 Lmswitchable
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADLC*NSF
- EnvironmentDampHealthcare General
- Mounting TypePendantCeiling SurfaceCeiling RecessedDrywallT-Grid Ceiling
- HousingIC
- Housing Depth1.7 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
