Lithonia Lighting (Acuity Brands Lighting)
ESX1. Contractor Select Area Luminaire LED.
Configure
Add to project
RESOURCES
DESCRIPTION

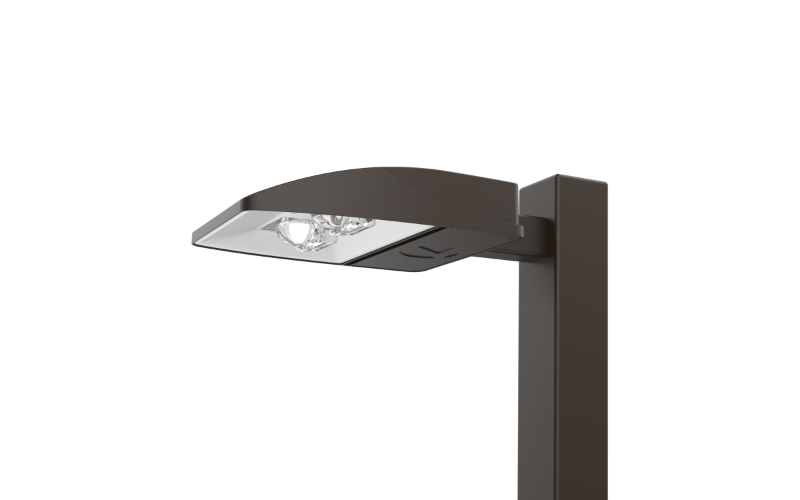

When your project calls for low initial cost and high energy savings, the Lithonia Lighting® ESX1 LED area luminaire delivers. ESX1 is ideal for one-for-one replacement of HID area lighting and provides up to 76% energy savings, long service life and fast payback.
The ESX1 delivers 8,000 to 25,000 lumens allowing it to replace 150W to 400W HID luminaires. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs.
All luminaires feature a reversible arm that allows for mounting on both round and square poles. Eight configurations of ESX1 luminaires are stocked in Acuity Brands distribution centers. The ESX1 offers a complete area lighting package and provides the combination of best product value, best price, and best delivery.
The ESX1 delivers 8,000 to 25,000 lumens allowing it to replace 150W to 400W HID luminaires. All ESX luminaires feature adjustable light output, providing two light levels from one product, allowing greater flexibility while helping reduce inventory costs.
All luminaires feature a reversible arm that allows for mounting on both round and square poles. Eight configurations of ESX1 luminaires are stocked in Acuity Brands distribution centers. The ESX1 offers a complete area lighting package and provides the combination of best product value, best price, and best delivery.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 19.9"L: 12"H: 2.9"
- Light SourceLED
- CCT/Color4000K5000K
- CRI70
- Watt(Approx)50 W98 W146 W190 W
- Lumens(Approx)8000 Lm14000 Lm21000 Lm25000 Lm
- OpticsDirectType III
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*
- EnvironmentIP66
- Mounting TypePole/Mast Arm
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeESX1_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
