Lithonia Lighting (Acuity Brands Lighting)

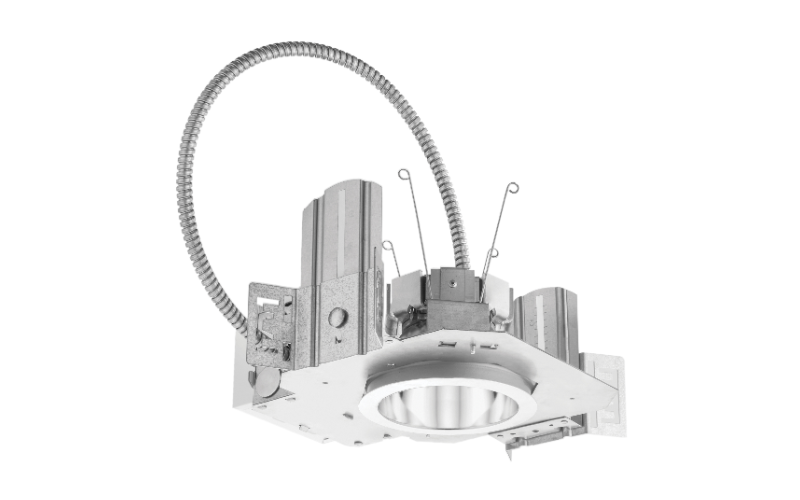

LDN. Contractor Select 4'' Round Series LED Commercial Downlight.
Configure
Add to project
RESOURCES
DESCRIPTION
LDN 4” of downlights are the most cost-effective general illumination solution for commercial-grade downlight applications. With 1,000, 1,500 and 2,000-lumen offerings, the LDN4 design allows for a quiet, glare-free ceiling without compromising on efficacy.
Key Features
Key Features
- 55° cutoff and 75+ LPW
- 1.0 Spacing/Mounting Height ratio
- Open wallwash kicker available
- eldoLED drivers (10% or 1% min dimming)
- Available with nLight® AIR capability for wireless control and connectivity
- Configurations support A+ Certified Solutions
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 5/16"6 1/4"L: 6 1/4"4 5/16"
- Light SourceLED
- CCT/Color3000K3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)11 W12 W18 W22 W19 W25 W
- Lumens(Approx)1000 Lm1500 Lm2000 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLEnergy Star*
- EnvironmentWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth5 11/16 ''6 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLDN-С_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
