Lithonia Lighting (Acuity Brands Lighting)

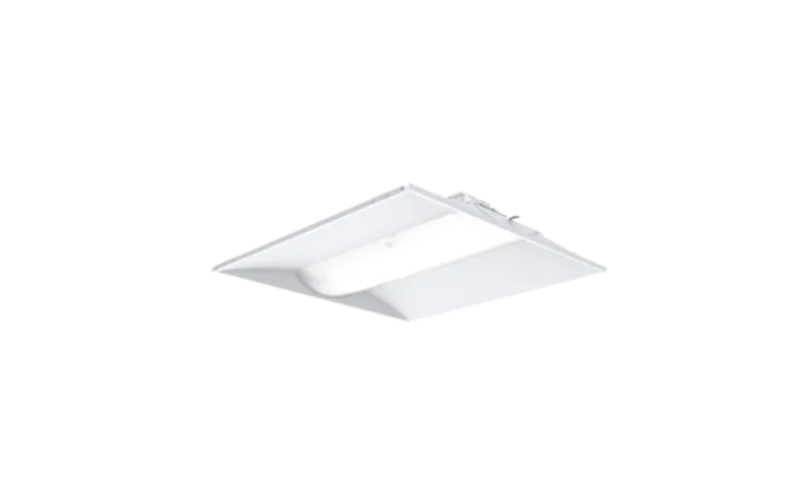

STAKS. STACK SWITCH LED Center Element Lay-In.
Configure
Add to project



RESOURCES
DESCRIPTION
STACK Switch™ from Lithonia Lighting® is the fully switchable version of the next-generation family of lay-ins. With its three Adjustable Lumen Outputs (ALO) and three Switchable Color Temperatures (SWW) both conveniently located on the driver box, STACK Switch replaces the need to stock nine skews with just one! It represents one of the four performance-tiered solutions the STACK Family brings to the market. The new aesthetic includes a wide, 7-inch curved lens which beautifully distributes the light, beveled end-plates to create a smooth transition from ceiling to light source, and less than 2 inches in total depth which makes it perfect for restricted plenum spaces, It is available in 1x4, 2x2 and 2x4 and works for multiple applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K4000K5000K6000KField Select CCT
- CRI80
- Watt(Approx)48.57 W40.99 W48.39 W
- Lumens(Approx)6077 Lm5053 Lm6228 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSADLC*
- EnvironmentDamp
- Mounting TypeCeiling Recessed
- HousingICChicago Plenum
- Housing Depth1.9 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
