Luminaire LED (Acuity Brands Lighting)

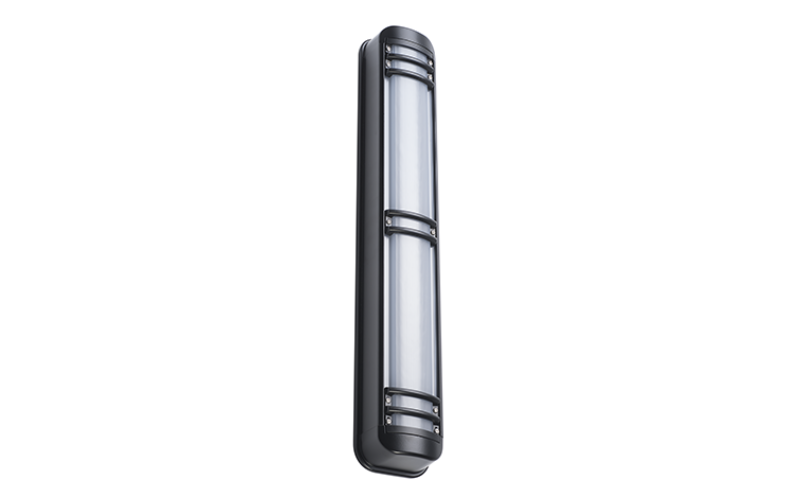

SPC4. SONAR AMBER WALL / CEILING/ PENDANT MOUNT AMBER LED Wildlife & Observatory Friendly.
Configure
Add to project
RESOURCES
DESCRIPTION
The Sonar SPC4 series offers architectural flexibility while maintaining maximum vandal resistance. A wide variety of grill configurations, colors and lengths are available, which can be combined in numerous ways. The all aluminum body construction enables the SPC4 to be used in any environment. The SPC4 fixture is available in four lengths and in 2700K, 3000K, 3500K, 4000K, 5000K or Amber. Optional Bluetooth connected occupancy sensors can be mounted discreetly behind the lens for a clean fixture appearance. Natatorium finish is standard for the SPC4.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.35"L: 15.5"26.1"37.88"49.69"H: 2.7"
- Light SourceLED
- CCT/ColorAmber (WildLife)
- CRI
- Watt(Approx)6.4 W15 W19.3 W25.6 W30 W38.4 Wcustom
- Lumens(Approx)107 Lm324 Lm430 Lm645 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance130000 h
- CertificatesUL/CULADABAA
- EnvironmentDampWetVandalproof
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSPC4-AMBER
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
