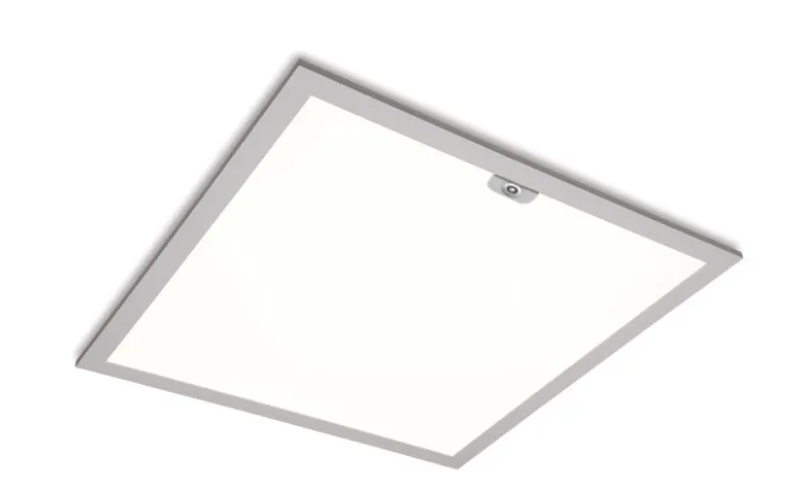

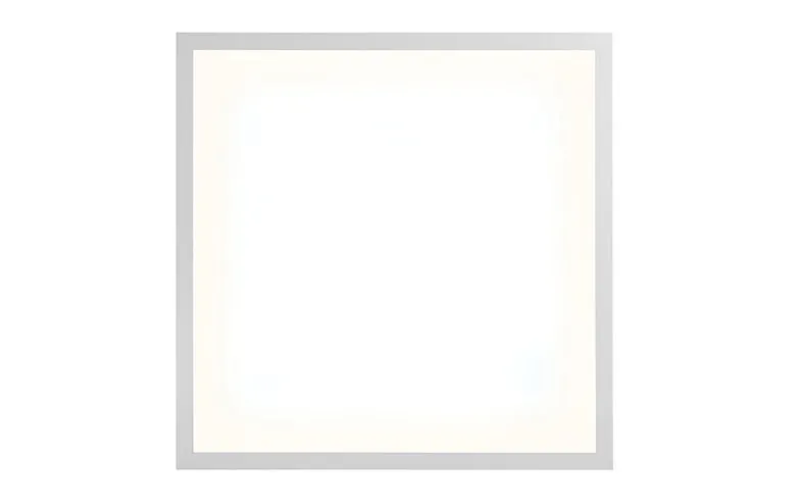

LPL22. Proline Value Series LED Recessed Luminaire - Panel Light Gen D.
Configure
Add to project
RESOURCES
DESCRIPTION
LPL recessed fixtures offer selectable lumens/CCT and an ISO 4 option for cleanroom rated projects.
- Daintree® Wireless Control options provide for code compliance and additional energy savings
- Accessory kits available for EMBB, controls and sensors
- Field selectable lumens and field selectable color temperature (CCT)
- EMBB test switch mounted remotely
- ISO 4 option for cleanroom rated projects
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 23.78"L: 23.78"
- Light SourceLED
- CCT/Color3500K4000K5000KField Select CCT
- CRI80
- Watt(Approx)21.5 W34 W39.5 W
- Lumens(Approx)2400 Lm3750 Lm4350 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingIC
- Housing Depth1.65 ''
