Lumenwerx
AE2REFCY. AERA 2'' REFLEX CYLINDER NEW CONSTRUCTION.
Configure
Add to project
RESOURCES
DESCRIPTION

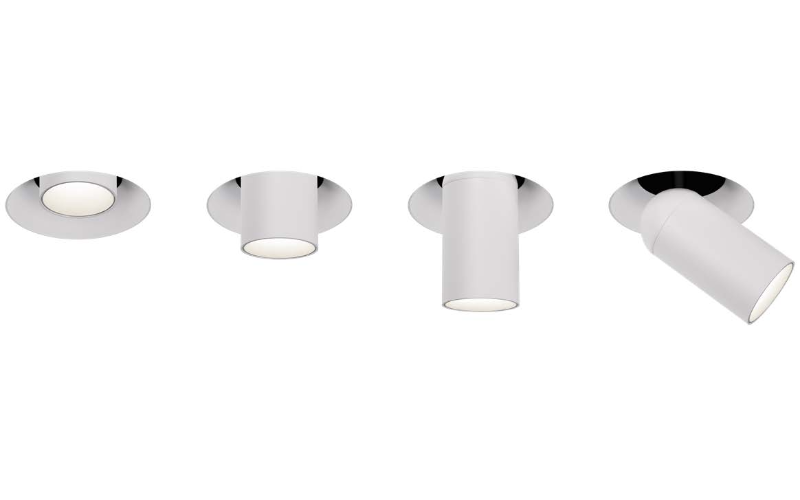

Aera Reflex brings Downlight and Cylinder together in a Single Form. Designed to move between flush, semi-recessed, and extended positions, it supports both ambient and accent lighting within a unified system. Built on the Aera optical platform, Reflex delivers precision optics, high efficacy, and refined architectural detailing. One form. Multiple expressions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/16"2 3/16"L: 2 1/16"2 3/16"H: 3 3/16"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)6 W8 W
- Lumens(Approx)480 Lm640 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron Hi-lume Premier Eco (PEQ0)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless DrywallT-Grid CeilingTrimless Wood
- HousingNew ConstructionIC
- Housing Depth6 13/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAE2REFCY
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
