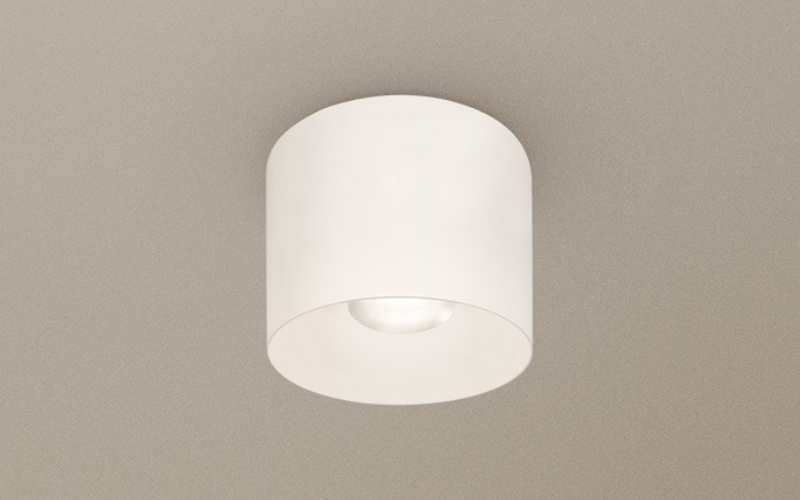

AE4CYS. AERA 4'' CYLINDER SURFACE, SURFACE ASYMMETRIC.
Configure
Add to project
RESOURCES
DESCRIPTION
Pendant, surface, and wall mounted, Aera cylinders can emit up to 106 lm/W, a powerful punch from such slim and elegant profiles. Aera cylinder pendants can be equipped with a soft uplight, while their wall-mounted counterparts can accommodate matching up and down optics. Visual comfort is top-notch and in keeping with the entire family providing a UGR of <10 for all beams.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 1/8"L: 4 1/8"H: 4"8"12"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K3500K Dim to Warm4000K5000KTunable White
- CRI80 90 95
- Watt(Approx)14 W20 W19 W28 W25 W
- Lumens(Approx)1400 Lm1100 Lm1538 Lm2146 Lm2882 Lm
- OpticsDirectNarrowMediumFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLT24*Energy Star*Declare
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
