Lumenwerx
CDEC. COMPASS DECO RECESSED WALL.
Configure
Add to project
RESOURCES
DESCRIPTION

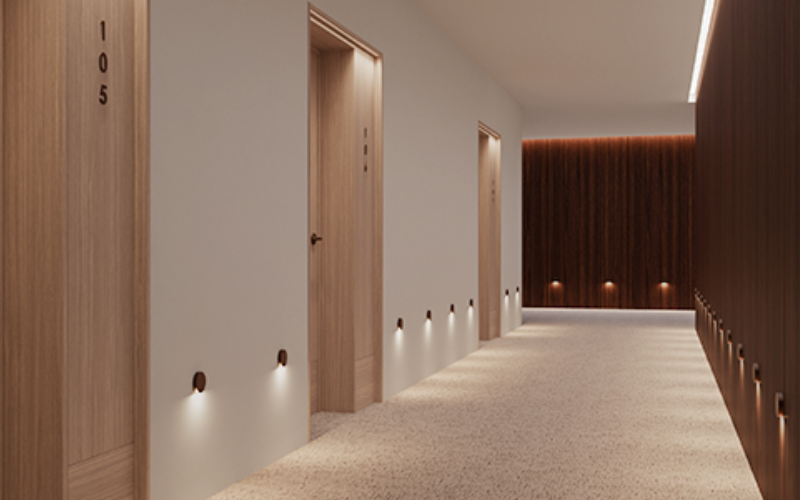

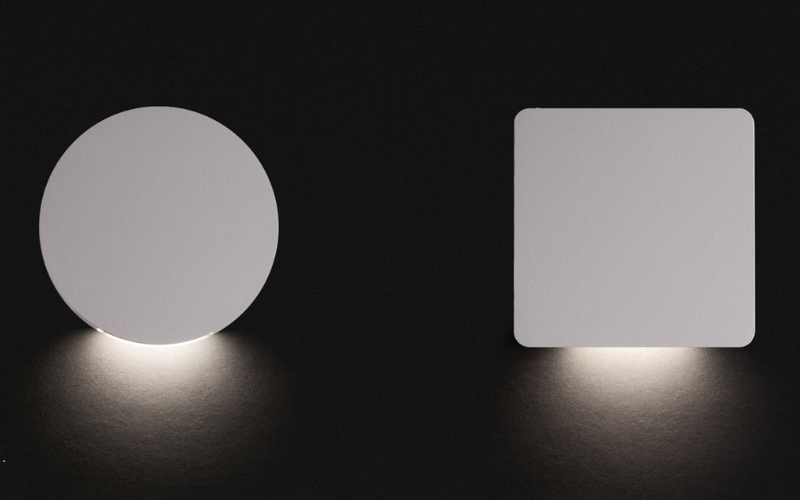

Also designed for indoor wayfinding, Compass Deco features a more decorative faceplate. Available in round and square forms, it supports both new construction and remodel applications and can distribute direct or indirect lighting, delivering low-level illumination with visual comfort.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 3"H: 3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2 W3 W
- Lumens(Approx)62-82 Lm69-92 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLADA
- EnvironmentDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCDEC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
