Lumenwerx

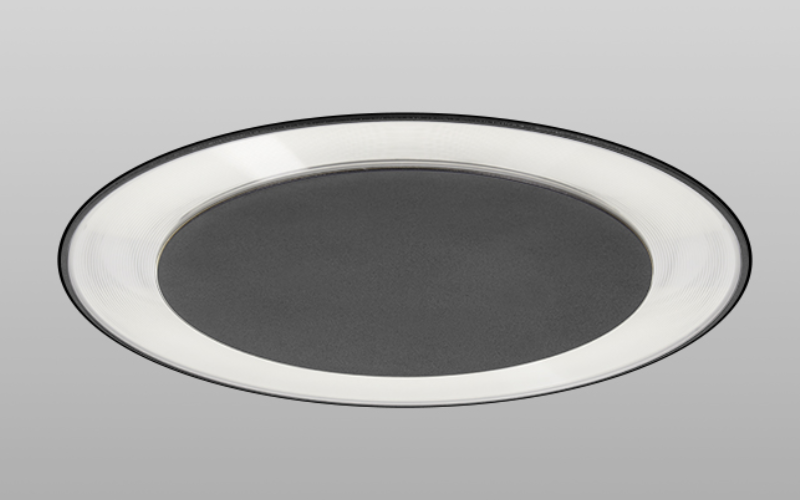

CLUPIRL. CLUSTER PI RECESSED KVCO, HLO OPTIC.
Configure
Add to project
RESOURCES
DESCRIPTION
Named after the mathematical constant we all know, Cluster Pi fixtures are graced with our Cluster family’s characteristic quality and mid-century modernist vibe, and, at the same time, embody softer, circular forms, some of which are able to house a secondary light source in an innovative concentric design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 13/16"6 13/16"9 1/16"L: 3 13/16"6 13/16"9 1/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)4.9 W8.2 W16.7 W
- Lumens(Approx)360 Lm400 Lm700 Lm780 Lm1200 Lm1350 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingNew ConstructionRemodel
- Housing Depth3 3/4 ''4 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCLUPIRL-KVCO-HLO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
