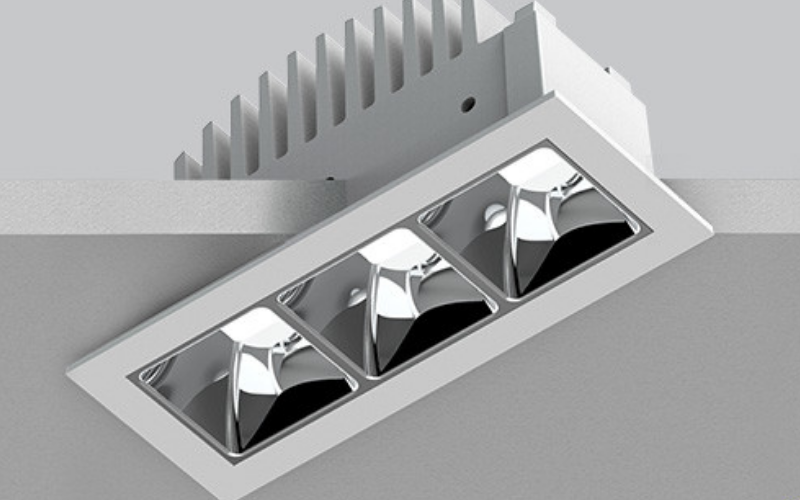

CLUR. CLUSTERS RECESSED LINEAR PARABOLIC.
Configure
Add to project



RESOURCES
DESCRIPTION
Clusters recessed parabolic downlights include linear downlights, planar downlights, and linear adjustable, all in various cell configurations. Downlights offer a choice of soft- and sharp-edge optics, multiple beam spreads and subtle aperture treatments. Nominal light output is 200 lumens per cell at over 85 LPW; total output ranges up to 1800 lumens in a linear configuration and to 5000 lumens for the largest array. Recessed Clusters can install in a variety of ceiling types and materials, with either an integral driver or a remote driver that is capable of powering multiple luminaires.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/8"1 13/16"L: 4 3/16", 3 13/16"6 9/16", 6 3/16"12 9/16", 12 3/16"18 9/16", 18 3/16"
- Light SourceLED
- CCT/Color2700K3000K3500K3500K Dim to Warm4000K5000KTunable White
- CRI90
- Watt(Approx)7.3 W11.5 W23.2 W34.8 Wcustom
- Lumens(Approx)584 Lm957 Lm1896 Lm2844 Lmcustom
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingWoodTrimless Wood
- HousingNew ConstructionICChicago PlenumRemodel
- Housing Depth2 5/32 ''4 ''4 13/16 ''5 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
