CLUS. CLUSTERS SURFACE PLANAR.
Configure
Add to project
RESOURCES
DESCRIPTION

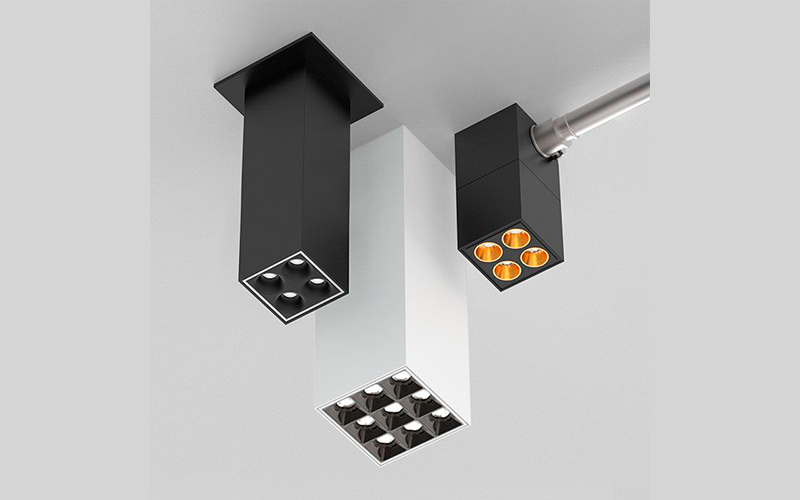

Cluster surface luminaires include linear and planar configurations with downlight, parabolic, and wall wash optics that match recessed types. Linear surfaces are available in 1-, 3-, and 5-cell configurations; planar pendants in 2x2 and 3x3 arrays. Surface Clusters fit a choice of 3", 8" or 12" deep cuboid enclosures. Nominal light output is 200 lumens per cell with efficacy over 80 LPW. Surface Clusters mount using a choice of direct feed, junction box with canopy, and conduit feed with splice enclosure. Driver is either integral or remote, which is capable of powering multiple luminaires.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 13/16"4"L: 2 13/16"4"H: 3"8"12"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)10.4 W21.5 Wcustom
- Lumens(Approx)811 Lm1743 Lmcustom
- OpticsDirectNarrowMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCLUSPC
