Lumenwerx
COROS. COMPASS ORYO SURFACE.
Configure
Add to project
RESOURCES
DESCRIPTION

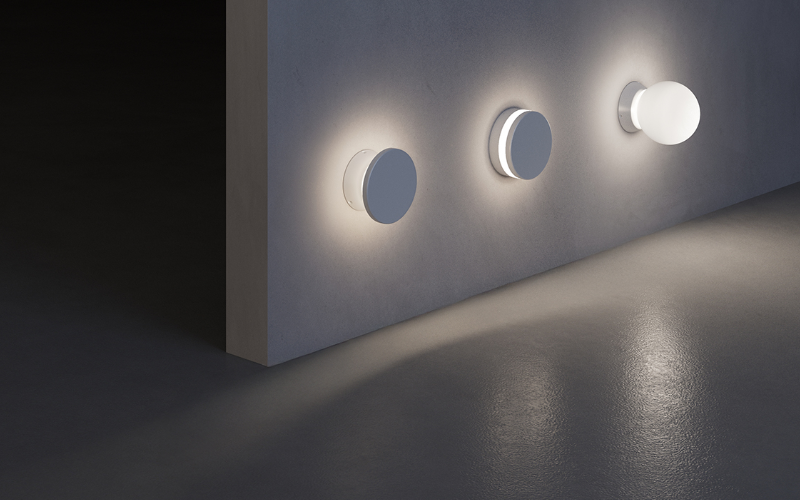

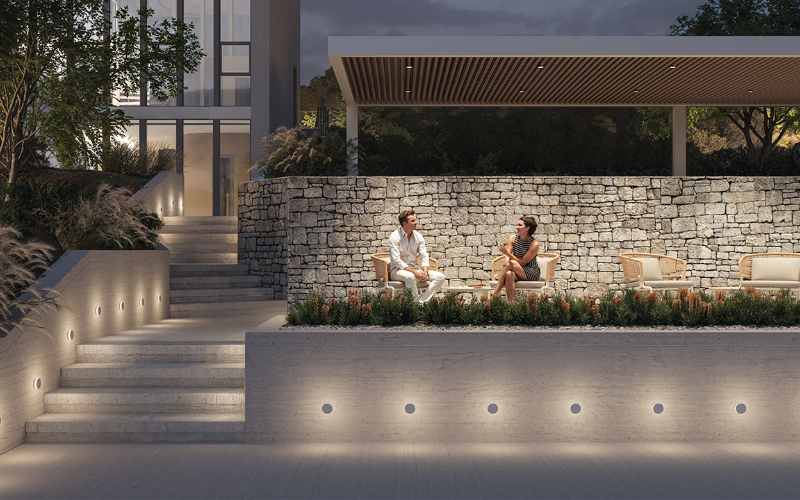

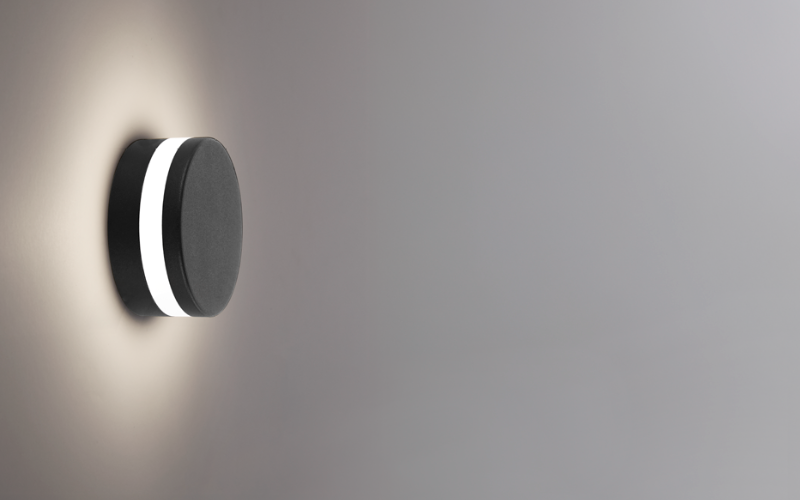

Compass Oryo defines space through light, direction, and rhythm. Merging precise engineering and IP66-rated durability with a refined form, Compass Oryo delivers controlled illumination ideal for spatial orientation in corridors, pathways, and open spaces.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/16"L: 3"H: 3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)4 W
- Lumens(Approx)120 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentIP66
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCOROS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
