Lumenwerx
CUE05RR. CUE 0.5'' ROUND PINHOLE RECESSED.
Configure
Add to project
RESOURCES
DESCRIPTION

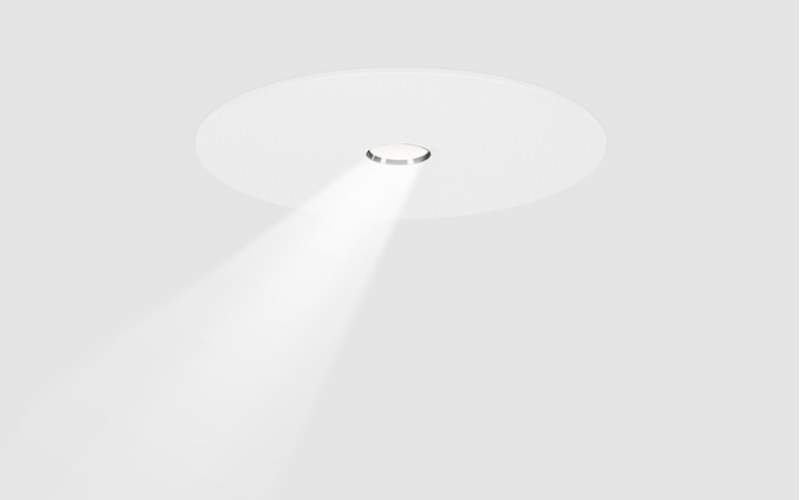

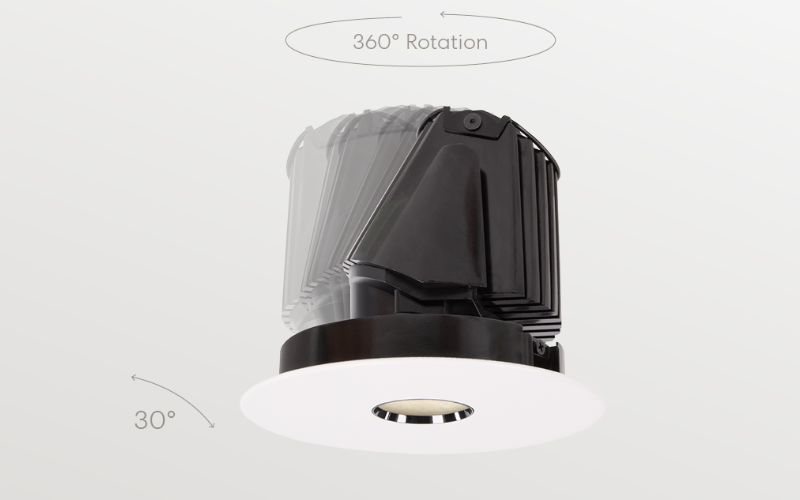

Cue 0.5" is a miniature pinhole downlight delivering precise beam control and extremely low glare from a highly compact aperture. Interchangeable optics sized specifically to the 0.5" opening provide multiple beam angles enabling refined accenting with exceptional control. Featuring below-ceiling tilt and full 360° rotation, Cue 0.5" allows accurate aiming and on-site adjustment while maintaining a minimal ceiling presence.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 0.5"L: 0.5"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)6 W8 W10 W
- Lumens(Approx)334 Lm446 Lm557 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallWood
- HousingNew ConstructionICChicago PlenumRemodelIC Air Tight
- Housing Depth2 11/16 ''3 1/8 ''4 1/8 ''6 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCUE05RR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
