CUE05RR. CUE 1'' ROUND PINHOLE RECESSED.
Configure
Add to project




RESOURCES
DESCRIPTION

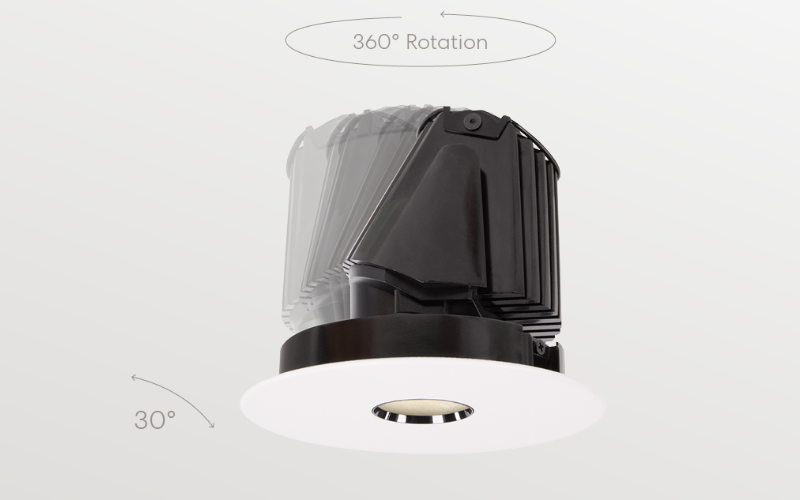

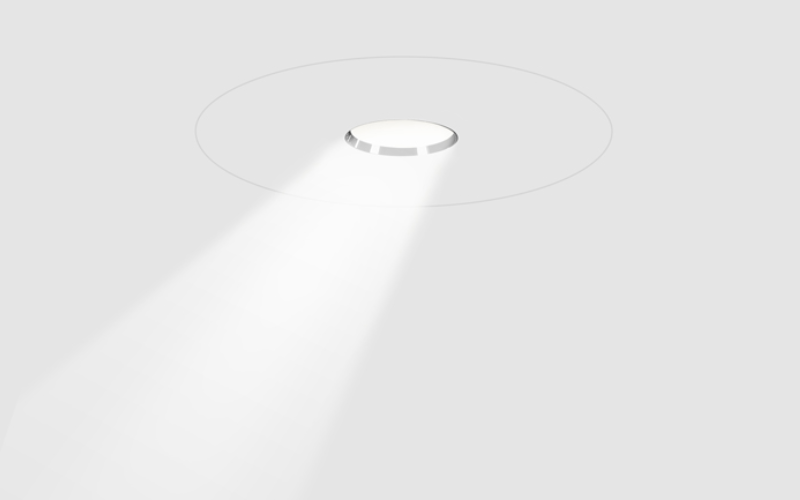

Cue 1" is a small-aperture pinhole downlight offering precise beam control and extremely low glare on a compact shared housing platform. Optics engineered for the 1" aperture provide a range of beam angles to support layered accent lighting. With below-ceiling tilt and full 360° rotation, Cue 1" enables deliberate aiming and on-site refinement while preserving a clean, quiet ceiling plane.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1"L: 1"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)6 W8 W10 W
- Lumens(Approx)812 Lm948 Lm1083 Lm
- OpticsDirectMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralRemotePoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallWood
- HousingNew ConstructionICChicago PlenumRemodelIC Air Tight
- Housing Depth2 11/16 ''3 1/8 ''4 1/8 ''6 7/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
