Lumenwerx
CURV3PERPAT. CURVIA 3 PERIMETER PATTERN RECESSED.
Configure
Add to project
RESOURCES
DESCRIPTION

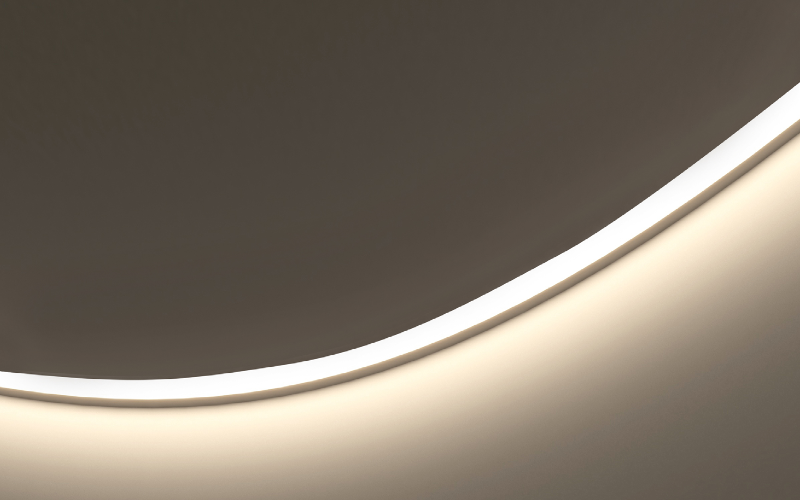

HIGHLIGHT CURVED CONTOURS Curvia Perimeter fixtures highlight the contours of curved perimeters in three distinct mounting options: 1) level, for dramatic lighting; 2) shallow, for a softer effect; and 3) deep-recessed, for a more subtle look.
- Widths: 2'', 3'', 4'', 5''
- Optics: High-Efficiency Lambertian Optic (HLO) and Asymmetric Opal Optic (AOO)
- Three Mounting Positions
- Sealed Options (IP65-IP54)
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KFull Spectrum
- CRI80 90 95
- Watt(Approx)3.1 W/Ft4.6 W/Ft7.2 W/Ft10.1 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft1200 Lm/Ft
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETLDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingICChicago Plenum
- Housing Depth5 1/4 ''6 1/4 ''8 1/2 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCURV3PERPAT
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
