Lumenwerx

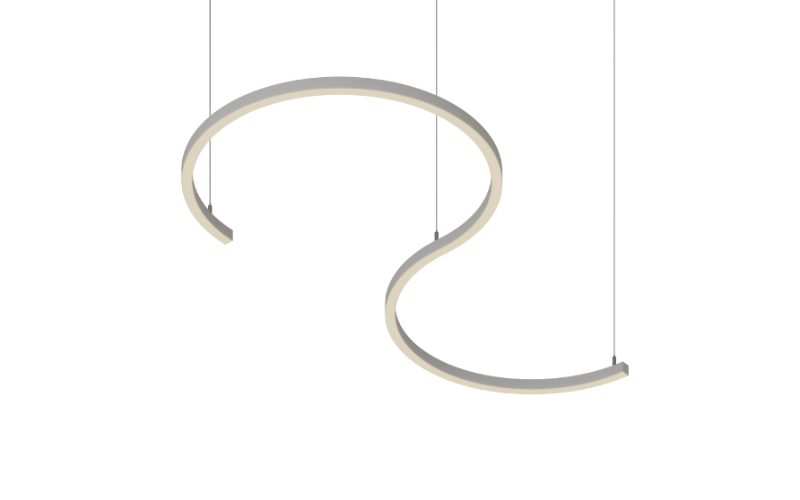

CURVSLIM1PAT. CURVIA SLIM 1 PATTERN PENDANT - RECESSED - SURFACE - WALL.
Configure
Add to project
RESOURCES
DESCRIPTION
Standing just 1.25″ tall with a 1″ width, Curvia Slim 1 delivers the full performance of Curvia in a slimmer profile. With three standard radii, 90° straight corners, and a choice of flat or rounded endcaps, it enables elegant arcs, rings, and intricate patterns across recessed, surface, pendant, and wall/direct-view applications. Designed for seamless integration, Curvia Slim 1 makes bold geometry possible in the most compact form factor.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 5/16"L: Run length (inch)H: 1 1/4"1 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)3.4 W/Ft4.8 W/Ft7.1 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLADA
- EnvironmentCorrosion Resistant
- Mounting TypePendantCeiling SurfaceCeiling RecessedWall SurfaceDrywallTrimless DrywallT-Grid Ceiling
- HousingIC
- Housing Depth3 3/16 ''
