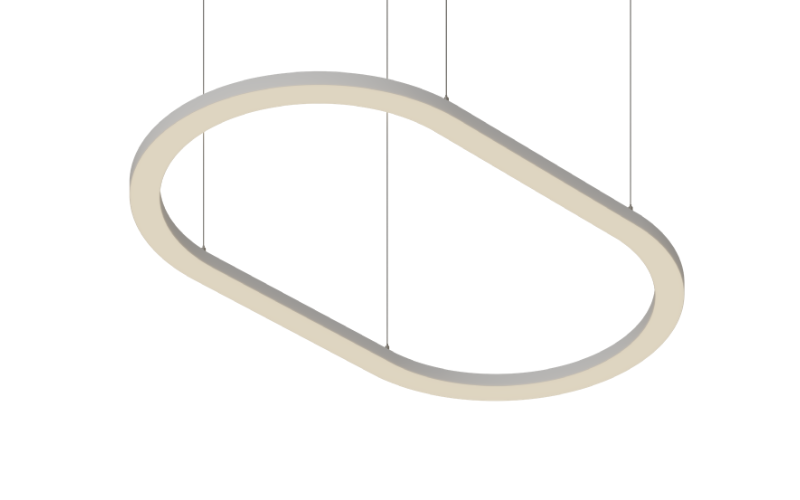

CURVSLIM2. CURVIA SLIM 2 SHAPES PENDANT - RECESSED - SURFACE - WALL.
Configure
Add to project
RESOURCES
DESCRIPTION
At 1.25″ tall and 2″ wide, Curvia Slim 2 delivers the full performance of Curvia in a slimmer profile. Offering three radii, 90° straight corners, and two endcap options, it supports flowing curves and bold compositions with consistent illumination and architectural precision. Versatile mounting options — recessed, surface, pendant, and wall/direct-view — allow Curvia Slim 2 to adapt effortlessly from subtle accents to expansive patterns.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 7/16"L: Run length (inch)H: 1 1/4"1 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)2.8 W/Ft4 W/Ft5.9 W/Ft7.7 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLADA
- EnvironmentCorrosion Resistant
- Mounting TypePendantCeiling SurfaceCeiling RecessedWall SurfaceDrywallTrimless DrywallT-Grid Ceiling
- HousingIC
- Housing Depth3 3/16 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
