EVOQNAL. EVOQ NANO COVE LIGHTING.
Configure
Add to project
RESOURCES
DESCRIPTION

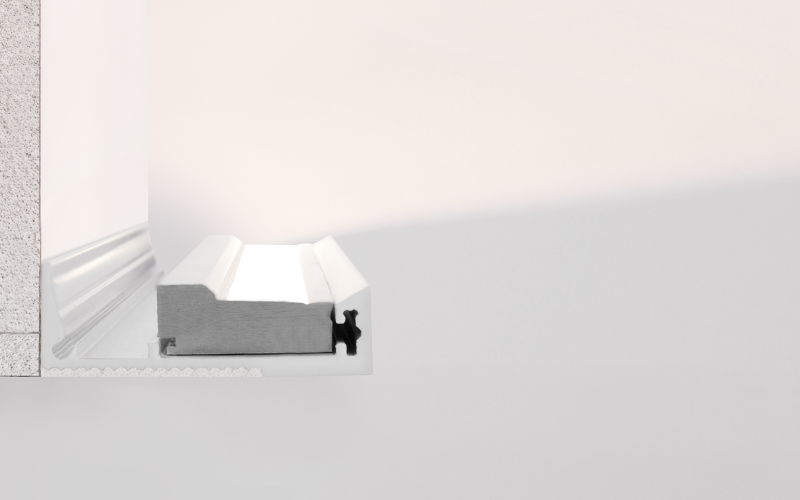

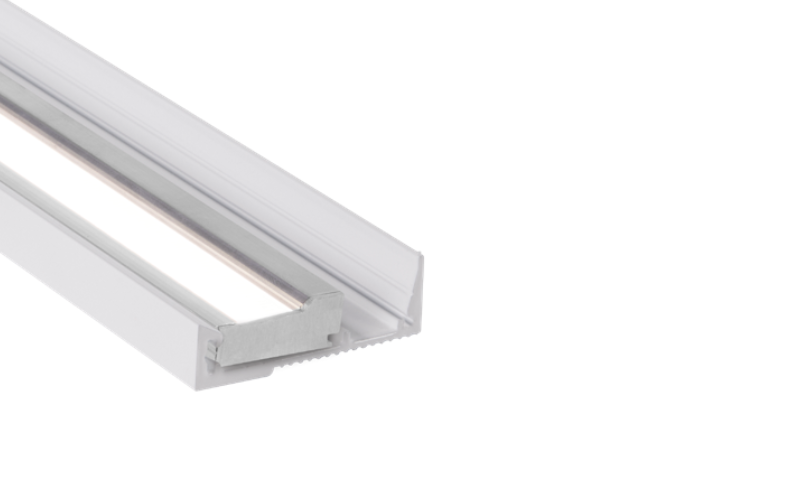

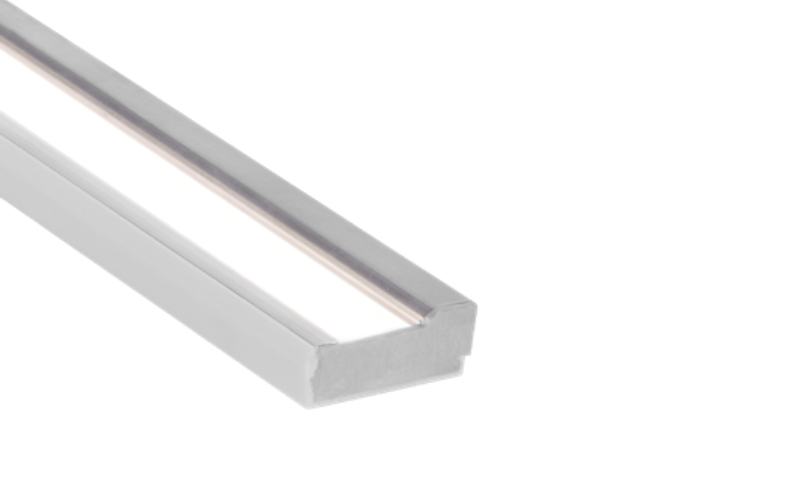

Evoq Nano brings controlled architectural illumination to tight coves and concealed details traditionally served by LED tape. Its ultra compact profile, dedicated asymmetric optic, remote driver, and 6-inch length increments support precise integration where larger linear systems cannot fit.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 7/16"L: Run length (Ft)H: 7/16"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K4000K5000K6500K
- CRI80 90
- Watt(Approx)2.5 W/Ft4.1 W/Ft5.8 W/Ft8.3 W/Ft
- Lumens(Approx)150 Lm/Ft250 Lm/Ft350 Lm/Ft500 Lm/Ft
- OpticsIndirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEVOQNAL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
