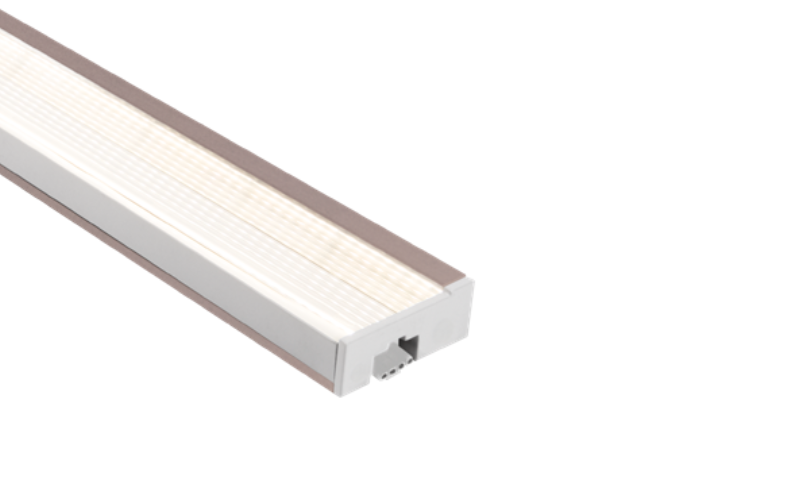

EVOQSLL. EVOQ SLIM COVE LIGHTING.
Configure
Add to project
RESOURCES
DESCRIPTION
Evoq Slim brings the optical control and performance of Evoq into a shallower ¾” profile. With four precision optics, output up to 1000 lm/ft, and a remote driver, it extends the collection into compact cove conditions with high-output capability and broad optical flexibility.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 7/8"L: Run length (Ft)H: 3/4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K3500K Dim to Warm4000K5000K6500KTunable WhiteFull Spectrum
- CRI80 90 95
- Watt(Approx)3.8 W/Ft6.2 W/Ft8.6 W/Ft10.9 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsIndirectFloodWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEVOQSLL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
