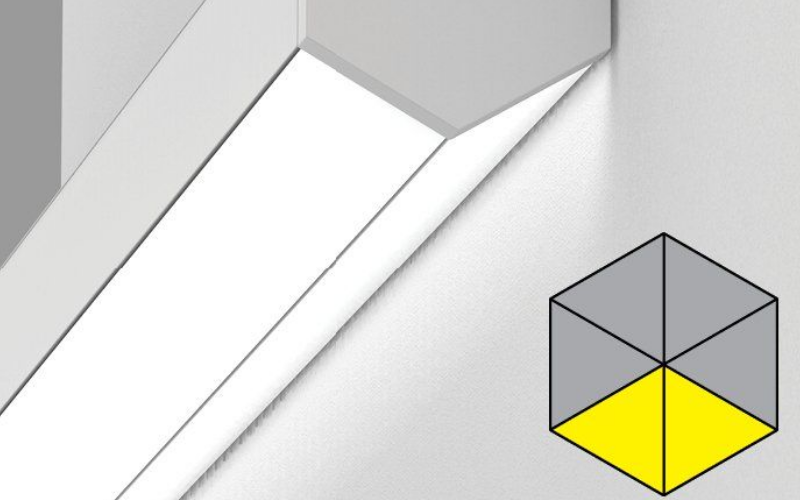

HEX2W. HEX LED WALL.
Configure
Add to project



RESOURCES
DESCRIPTION

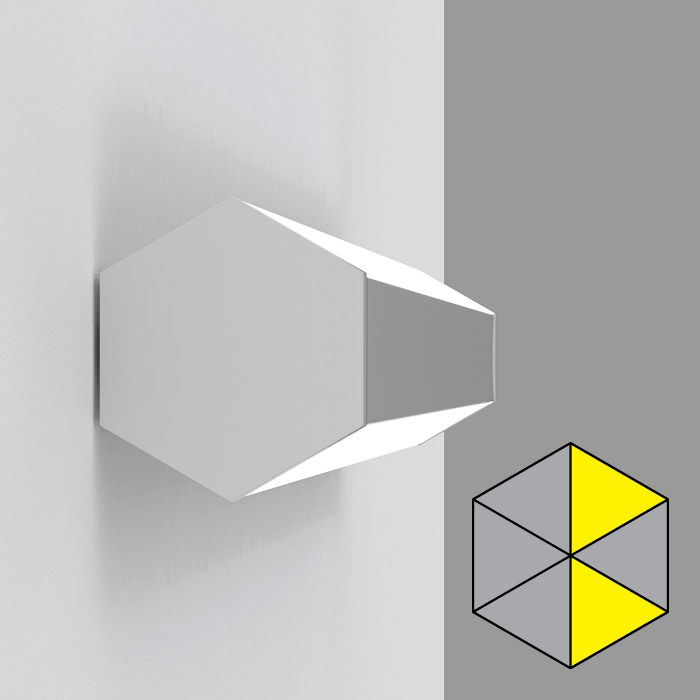

Hex is the distinctive and flexible six-sided luminaire for creative designs. Cell configuration determines the light distribution and overall light output. Each cell is illuminated by its own LED array with consistent light output and brightness across all cells. The 2" wide panels snap into the core armature providing nearly seamless transition from cell to cell, as well as access to LED arrays and driver.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 7/16"L: 2 Ft4 Ft5 Ft6 Ft8 FtRun length (Ft)H: 4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)3.8 W/Ft5.6 W/Ft7.8 W/Ft
- Lumens(Approx)500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLADA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHEX2W
—
