Lumenwerx
LV2.5RR. LIVV 2.5'' DOWNLIGHT ROUND RECESSED , ADJUSTABLE, WALL WASH.
Configure
Add to project
RESOURCES
DESCRIPTION

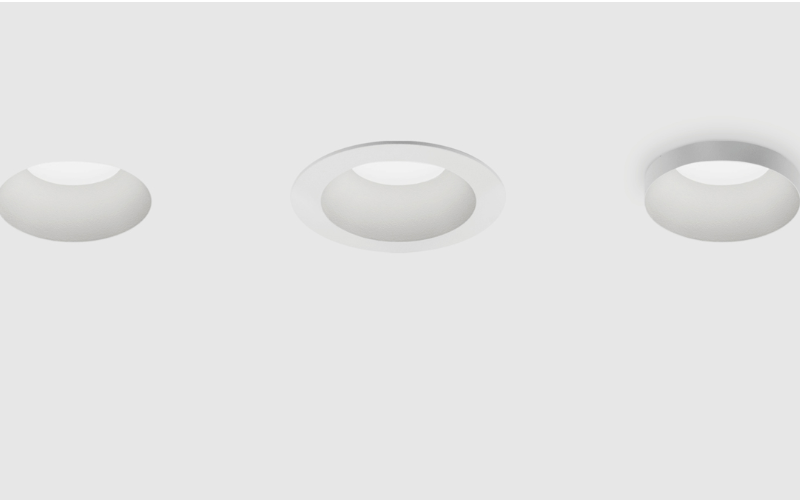

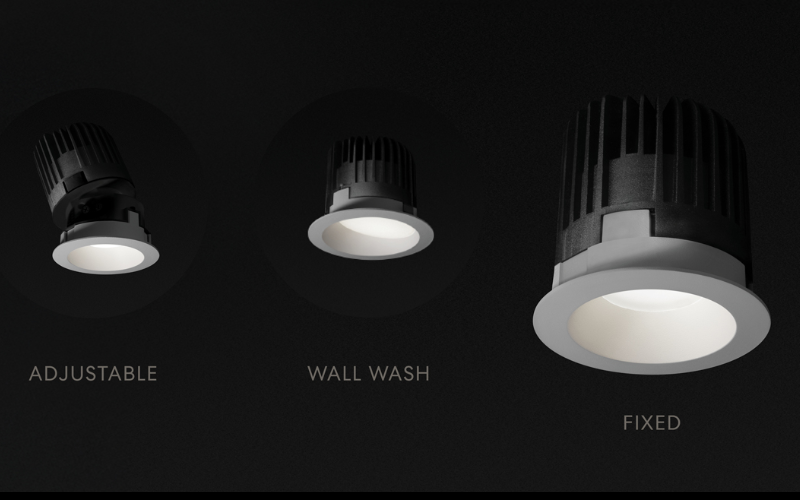

Built for scale, the Livv family delivers downlight essentials in a clean architectural form backed by LivvCore™, our proprietary Driver-on-Board technology. Livv’s quick-connect system and below-ceiling access allow for fast, contractor-friendly installation and easy maintenance. Available in 2.5" and 3.5" apertures with fixed, adjustable, and wall wash distributions. The collection also includes Livv Plus (The Extras), with advanced features such as tunable white and expanded control.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/4"3 1/2"L: 3 1/2"3 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K
- CRI95
- Watt(Approx)5 W8 W12 W
- Lumens(Approx)579 Lm899 Lm1320 Lm
- OpticsDirectFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampWet
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingICChicago PlenumRemodelIC Air Tight
- Housing Depth3 5/16 ''4 3/16 ''4 1/16 ''4 1/2 ''5 ''6 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLV2.5RR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
