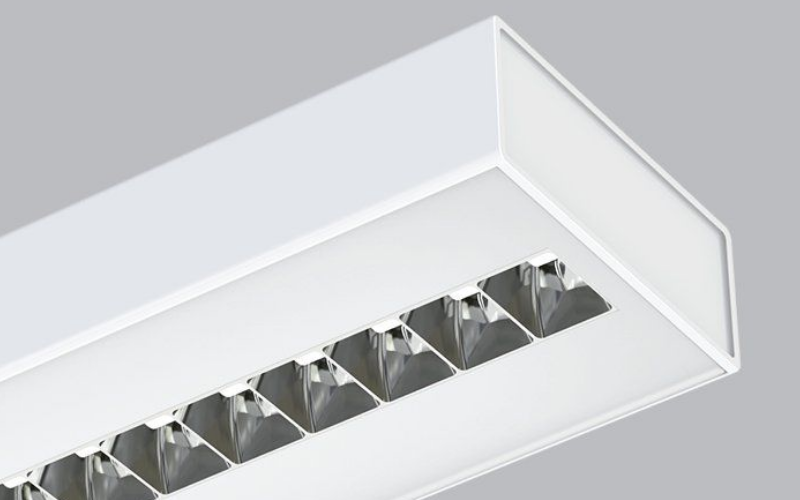

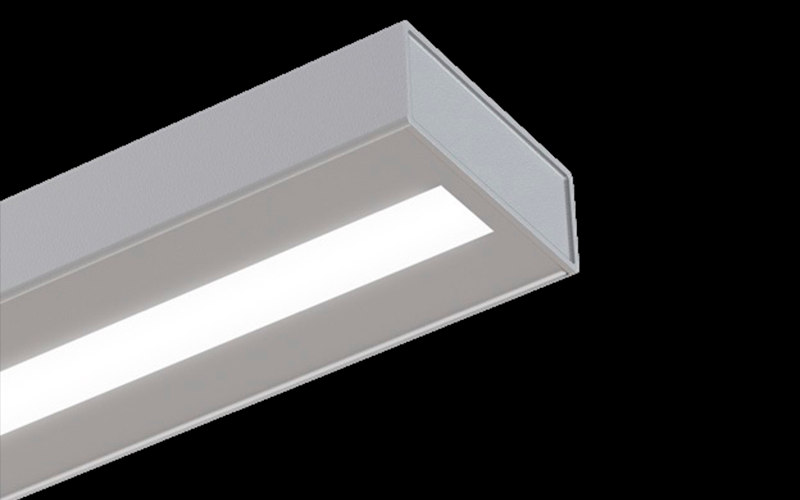

MEDD. MEDIUS LED PENDANT DIRECT CHROMAWERX TUNABLE WHITE AND DIM TO WARM.
Configure
Add to project
RESOURCES
DESCRIPTION
Within its compact 1 15/16" x 4 ¾" profile, Medius supports a choice of outstanding optics for high performance direct and direct/indirect lighting. The result is excellent visual comfort with UGR better than 16, smooth ceiling uniformity, and efficacy up to 119 LPW. Medius offers ChromaWerx for tunable white applications.
A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.
A sliding cable option simplifies installation in existing spaces. Medius configures as individual luminaires or continuous runs and features the full range of electrical and control options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4 3/4"L: 4 Ft8 Ft12 FtRun length (Ft)H: 1 15/16"
- Light SourceLED
- CCT/Color3500K Dim to WarmTunable White
- CRI80 90
- Watt(Approx)12.5 W18.5 W29 W40.5 Wcustom
- Lumens(Approx)350 Lm500 Lm750 Lm1000 Lmcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
