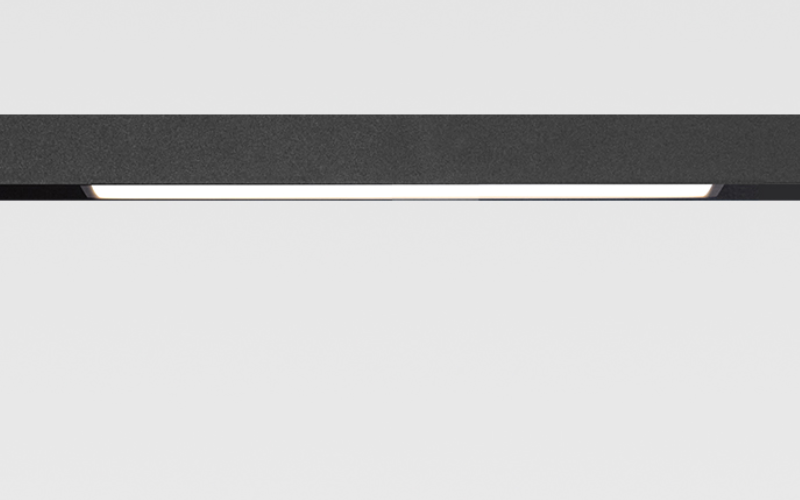

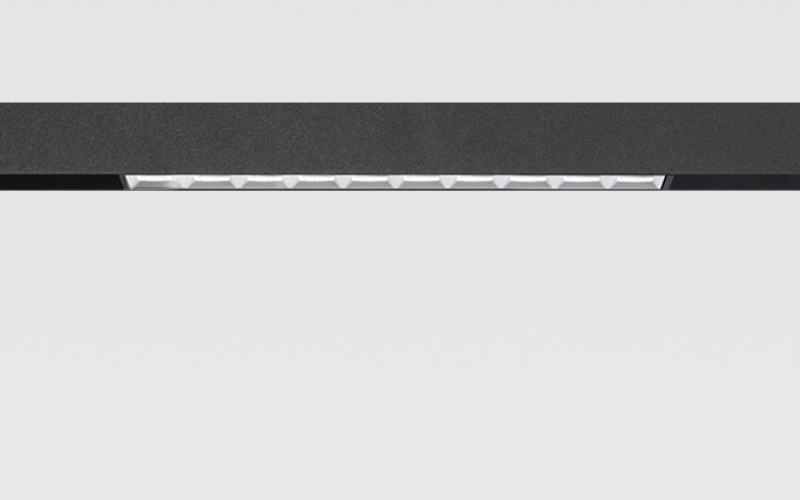

MPIVHLO. MINI PIVOT TRACK MODULES.
Configure
Add to project




RESOURCES
DESCRIPTION

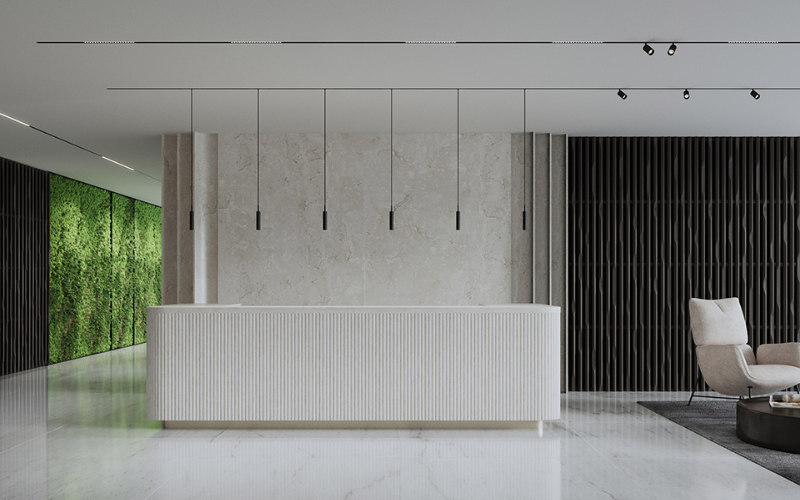

The Mini Pivot Track is low voltage and accommodates the Mini Pivot Track Modules. While offered as a recessed, surface, or pendant-mounted system with all luminaires distributing direct light, the pendant option, in particular, can accommodate modules on both its direct and its indirect sides. The Mini Pivot Track possesses infinite run capabilities in segments of up to 8 feet with smooth transitions at the joint. It can also branch out to create a multitude of shapes, patterns, and effects for various architectural applications.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3/4"13/16"1"1 1/4"0.7"1 3/4"1 11/16"2 3/16"4"6"8"8 7/8"L: 1"1 15/16"1 11/16"2 3/16"1 1/4"4"6"7"8"8 7/8"1'14"1 Ft2'28"2 Ft3'3 Ft4'4 FtH: 2.65"3 7/8"4 1/4"4"6"9"8"12"18"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90 95
- Watt(Approx)3.3 W/Ft5.1 W/Ft8.4 W/Ft6.6 W/Ft5.2 W/Ft5.25 W/Ft6 W/Ft8.2 W/Ft10 W/Ft8 W/Ft5.6 W/Ft7.7 W/Ft10.1 W/Ft13.1 W/Ft12 W/Ft14.4 W/Ft16.9 W/Ft19.1 W/Ft20.2 W/Ft33.8 W/Ft40.4 W/Ft4 W/Ft5.9 W/Ft
- Lumens(Approx)300 Lm/Ft375 Lm/Ft350 Lm/Ft500 Lm/Ft550 Lm/Ft750 Lm/Ft700 Lm/Ft582 Lm/Ft671 Lm/Ft600 Lm/Ft850 Lm/Ft900 Lm/Ft782 Lm/Ft1100 Lm/Ft1500 Lm/Ft1700 Lm/Ft2200 Lm/Ft3000 Lm/Ft3400 Lm/Ft200 Lm/Ft250 Lm/Ft450 Lm/Ft400 Lm/Ft
- OpticsDirectOmni-DirectionalMediumFloodWide FloodGeneral DiffusedVolumetric
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- Environment
- Mounting TypeTrack/BuswaySystem
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
