Lumenwerx
REVPICL. REVEN ICL LED PENDANT DIRECT/INDIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION

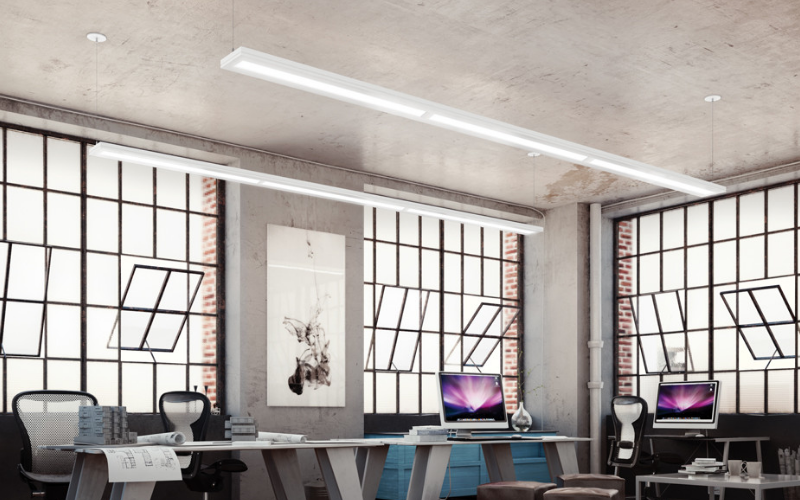

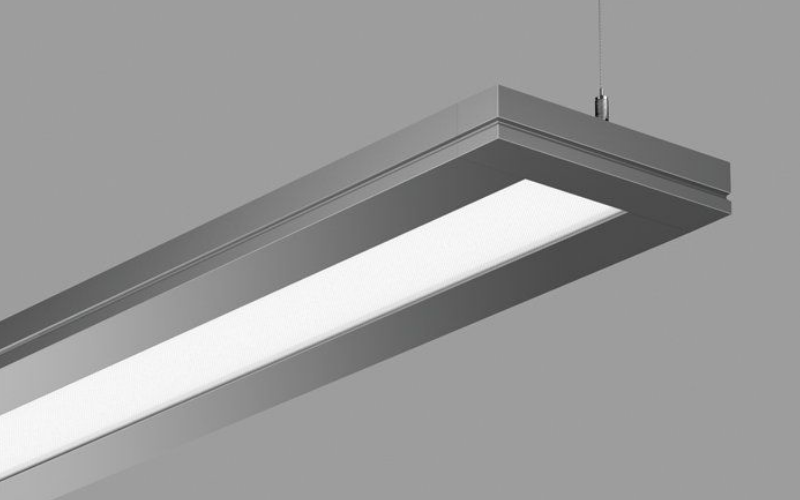

Reven is a linear LED pendant luminaire with a thin, articulated profile. Using advanced LED engines and optical control, Reven provides wide spread uplight and well controlled downlight. This highly efficient and comfortable illumination is offered in a wide range of light distributions together with comprehensive electrical and controls options. Reven ICL with an Independently Controllable Light output of its indirect and direct components is also available. Companion wall luminaire is also available. Reven is also available in T5 & T5HO.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8"L: 4 Ft8 Ft12 FtRun length (Ft)H: 1 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI80 90
- Watt(Approx)18.5 W/Ft20.45 W/Ft22.5 W/Ft16 W/Ft17.75 W/Ftcustom
- Lumens(Approx)500 Lm/Ft750 Lm/Ft875 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkLutron®nLight®ENCELIUM®Wireless DimmingCasambiWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeREVPICL
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
