Lumenwerx
RIMMIRDREP. RIM MINI ROUNDED RECTANGLE PENDANT STATIC WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION

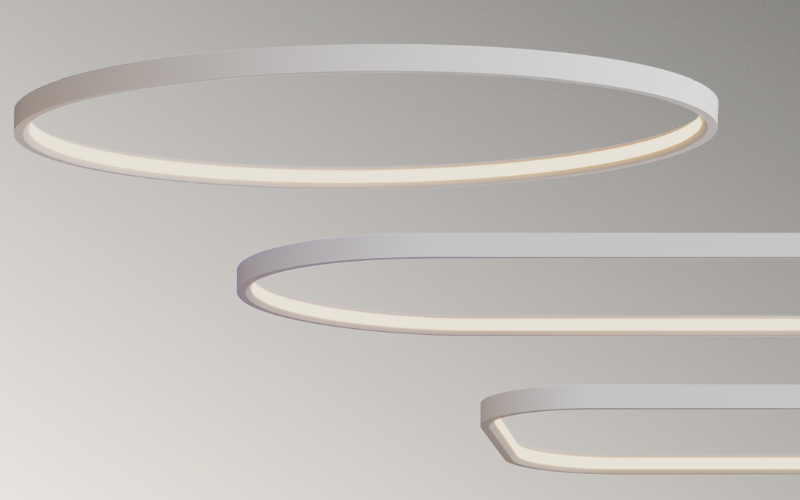

Rim Mini is part of our Miniwerx Collection—a growing series of luminaires engineered to deliver full-scale performance in significantly reduced form factors. At just 1.25" tall and 0.8" wide, Rim Mini is over 40% slimmer than the standard Rim profile and maintains the design freedom the Rim Collection is known for. It enables clean, precise lighting with a minimal visual footprint and maximum flexibility across shapes, sizes, and configuration options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 24 5/8"36 5/8"L: 48 5/8"72 5/8"96 5/8"H: 1 1/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)40 W46.7 W54.4 W68.9 W61.1 W59.8 W70.1 W81.6 W92 W103.4 W
- Lumens(Approx)3600 Lm4900 Lm4200 Lm6200 Lm5500 Lm5200 Lm6100 Lm7100 Lm9000 Lm8000 Lm
- OpticsOmni-DirectionalGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRIMMIRDREP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
