UBIPER. UBIK PERIMETER PATTERN RECESSED STATIC WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION

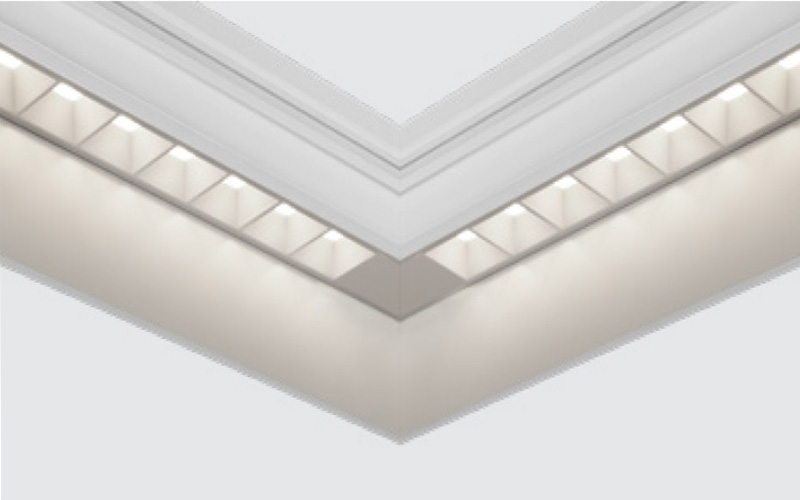

Sleek square form meets superb function in Ubik, a lighting family designed to provide a multitude of creative options. Designed with a 2.5" aperture, Ubik Perimeter offers subtle, low-glare illumination in level, shallow, and deep recessed arrangements with HLO (High-Efficiency Lambertian Optic) or parabolic louver options for direct illumination.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 5/32"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)10.4 W/Ft15 W/Ft22.9 W/Ft31.1 W/Ft37.8 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft1200 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)EldoLED SOLO 0-10V/DALIEldoLED ECO 0-10V/DALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDampCorrosion Resistant
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 3/4 ''4 3/4 ''7 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
