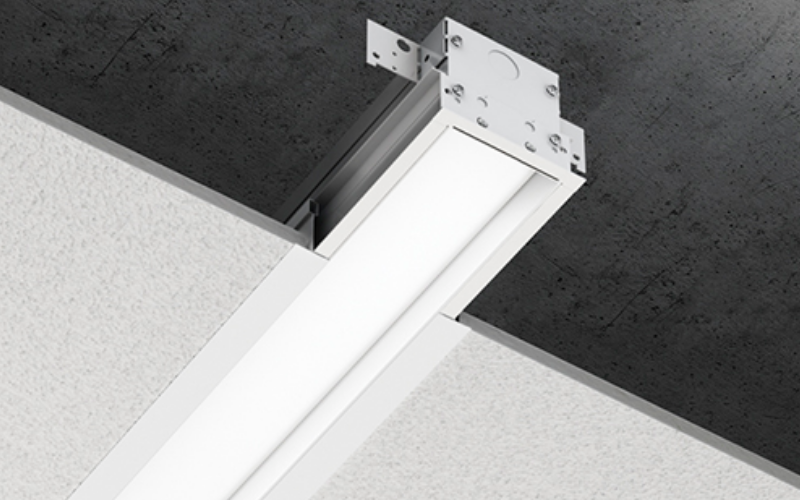

VIA3R. VIA 3 LED RECESSED CHROMAWERX QUADRO - RGBW.
-
S1LWIDP. Slot 1 Direct/Indirect Wall Patterns.
-
Lead timeVIA2RTW
Cost
—
LumenwerxVIA2R. VIA 2 LED RECESSED CHROMAWERX TUNABLE WHITE AND DIM TO WARM.
SPECIFICATIONSCONFIGURATOR- DimensionsW: 2 3/8"L: Run length (Ft)H: 0.5"1.0"
- Light SourceLED
- CCT/Color3500K Dim to WarmTunable White
- CRI80 90
- Watt(Approx)1.8 W/Ft3.2 W/Ft4.7 W/Ft7.2 W/Ft9.9 W/Ft12.2 W/Ft
- Lumens(Approx)200 Lm/Ft350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft1200 Lm/Ft
- OpticsDirectFloodWide FloodGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALIDMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLDeclare
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 3/4 ''
DESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.CONFIGURATORMarks unavailable product configuration, refer to manufacturer’s documentation for details__-__-__-__-__-__-__-__-__-__-__-__-__-____
BUILD CATALOG NUMBERSAVE CONFIGURATION CANCEL CHANGES—Qty:DOWNLOAD CONFIGURATION__-__-__-__-__-__-__-__-__-__-__-__-__-__- LUMINAIRE ID
-
VIA2R Via 2" Recessed! VIA2R
- DISTRIBUTION
-
D Direct! D
- OPTICS
-
HLO High-Efficiency Lambertian Optic! HLO
-
ARO2 Asymmetric Refractive Optic! ARO2
-
WRO2 Wall Wash Refractive Optic! WRO2
-
WDO Widespread Direct Optic! WDO
-
LGO Low-Glare Optic! LGO
- LENS POSITION
-
FH Flush1! FH
-
0.5D 0.5" drop1! 0.5D
-
1.0D 1.0" drop1! 1.0D
-
1 · For HLO, specify FH, 0.5D, or 1.0D. · For ARO2, WRO2, WDO, and LGO, specify FH.
- LIGHT SOURCE2
-
DUO Dim-to-warm single channel control 35K to 22K! DUO
-
SOLA Tunable white 2-channel control 65K to 27K! SOLA
- 2 Static white, BIOS, and Chromawerx QUADRO also available. Consult other spec sheets.
- CRI
-
80CRI 80+ CRI! 80CRI
-
90CRI 90+ CRI! 90CRI
- LUMEN PACKAGES
-
200LMF Hypo output 200 lm/ft3! 200LMF
-
350LMF Low output 350 lm/ft! 350LMF
-
500LMF Medium output 500 lm/ft! 500LMF
-
750LMF High output 750 lm/ft! 750LMF
-
1000LMF Ultra high output 1000 lm/ft4! 1000LMF
-
1200LMF Hyper output 1200 lm/ft5,6! 1200LMF
-
3 Minimum 4' fixture. 4 Not available with LGO.5 Not available with WDO/LGO.6 Fixture will be very bright. Use in suitable applications
- LUMINAIRE LENGTH
-
FTIN Specify nominal length (#) in 1' and/or 1" increments7! FTINStandard nominal lengths:Single units: 2' to 12'Continuous runs: lengths over 12'
-
7 · Minimum 2'. · Minimum 4' for DMX.
- VOLTAGE
-
120V 120V! 120V
-
277V 277V! 277V
-
UNV 120V-277V! UNV
- DRIVER8
-
SD1 Single 0-10V input (SOLA)! SD1
-
DMX DMX9,10 (DUO)! DMX
-
DDA DALI DT610 (DUO)! DDA
-
DDA8 DALI DT810 (DUO)! DDA8
-
DD1 Dual 0-10V input for CCT/intensity (DUO)! DD1
-
LD2 Lutron DALI-2 digital10 (DUO)! LD2
-
8 PoE (Power-over-Ethernet) compatible. Consult factory for details. 9 For more information, see pages 9 to 14.10 On-site commissioning is required.
- ELECTRICAL
-
1 1 circuit! 1
- MOUNTING11
-
TG9 Tegular 9/16"! TG9
-
TG15 Tegular 15/16"! TG15
-
TB9 T-bar 9/16"! TB9
-
TB15 T-bar 15/16"! TB15
-
ST Screw slot T-bar! ST
-
DTR Drywall trim! DTR
-
DTL Drywall trimless! DTL
-
DMF Drywall mud flange! DMF
-
MFM Multiple flange mounting12! MFM
-
11 Transition mounting options also available (e.g. Recessed to Pendant/Surface), consult factory for details. 12 See page 4 for details.
- FINISH
-
W Matte white! W
-
B Matte black! B
-
CF Custom finish, specify RAL#! CF
- OPTIONS13
-
FU120 Fuse 120V! FU120
-
FU277 Fuse 277V! FU277
-
FWC Flexible whip cable (6' std)! FWC
-
CP Chicago Plenum! CP
-
NA None! NA
- 13 Separate codes with a "+" if more than one is specified.
__- WALL CONTROLLER
-
WCW DMX wall controller white14! WCW
-
WCB DMX wall controller black14! WCB
-
TWCW Dual 0-10V wall controller white15! TWCW
-
TWCB Dual 0-10V wall controller black15! TWCB
-
14 Available with DMX only. For more information, see pages 9 to 14, or consult factory15 Available with DD1 only. For more information, see page 15, or consult factory
PRODUCT DESCRIPTION—Our elegant, flexible Via family is composed of linear, pendant, surface, recessed, and wall mounted luminaires, each of which can be installed as a discrete lighting fixture or in continuous runs or patterns. Asymmetric, widespread, low-glare, and wall wash optic options allow for precise distribution and exceptional light quality for a wide range of applications.MORE DESCRIPTION
