Lumenwerx
VLUXR. VIA LUX RECESSED DIRECT.
Configure
Add to project
RESOURCES
DESCRIPTION

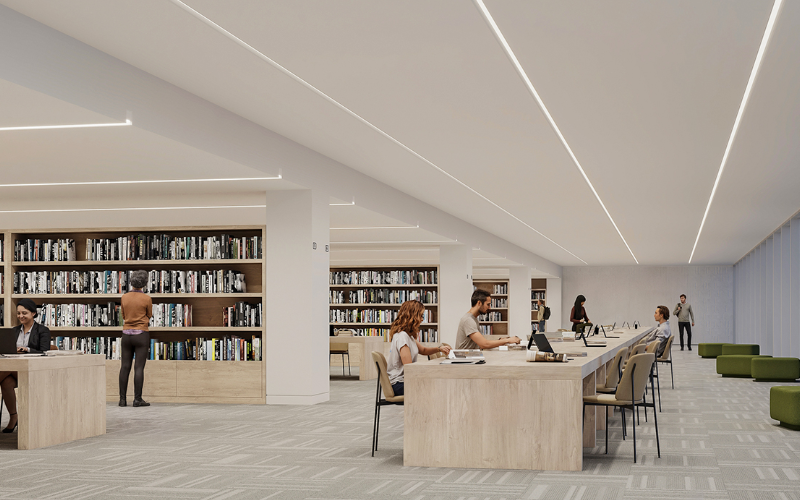

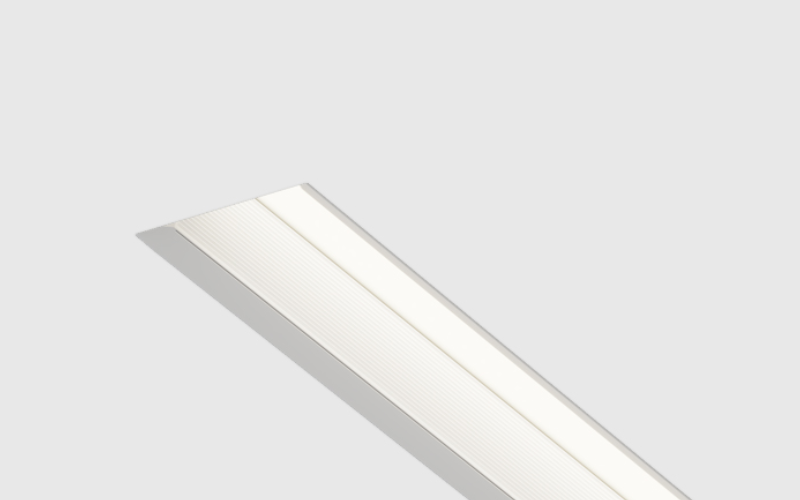

Via Lux combines refined aesthetics with engineering ingenuity, delivering premium linear lighting with high performance and low-glare comfort. At just 3" wide, Via Lux’s compact form with integral driver simplifies installation across pendant, surface, wall, and recessed applications. Offered in direct or direct/indirect distributions with open or closed end cap designs, Via Lux is endlessly adaptable.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: Run length (inch)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)3.5 W/Ft5.2 W/Ft8.3 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless DrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVLUXR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
