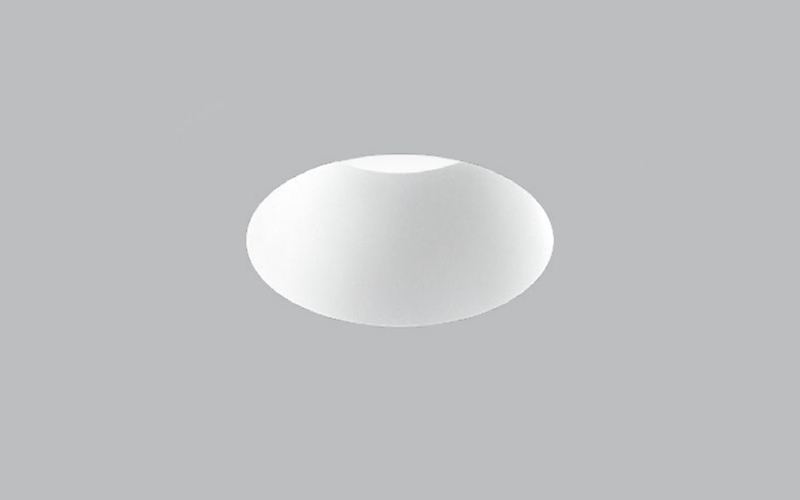

VO2RR. Voila True 2'' Round Downlight Fixed/Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION
Voila 2" downlights and wall washers are available in round and square apertures with Open Frame, IC and CCEA housings, all requiring less than 4" of plenum depth. Downlights adjust 30º vertically with screw thread mechanism and rotate 360º horizontally. Using HyFlex optics, field-interchangeable beam angles range from 10º to 90º. Integral drivers are available for 0-10V, ELV or Triac dimming and can be replaced through the 2" aperture. Remote drivers are available for other protocols, emergency operation, and ChromaWerx Sola and Duo. Die-cast baffles are offered in 0.5" and 1.0" depth with trim or trimless options and multiple finishes. Pre-set luminaire light output is available from up to 1340 lumens. Voila 2" downlights has an IP44 rating.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2"3 17/32"L: 2"3 17/32"
- Light SourceLED
- CCT/Color2700K3000K3500K3500K Dim to Warm4000KTunable White
- CRI90 80 95
- Watt(Approx)5 W7 W10 W8 W14 W13 W
- Lumens(Approx)300 Lm560 Lm640 Lm896 Lm900 Lm1103 Lm1338 Lm
- OpticsDirectNarrowMediumFloodWide FloodGeneral Diffused
- AdjustableHot Aiming
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)EldoLED SOLO 0-10V/DALIEldoLED ECO 0-10V/DALIDMX
- Controls/Network
- Power/VoltageIntegralRemoteUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallTrimless Wood
- HousingNew ConstructionICChicago Plenum
- Housing Depth4 ''3 25/32 ''
