Lumenwerx

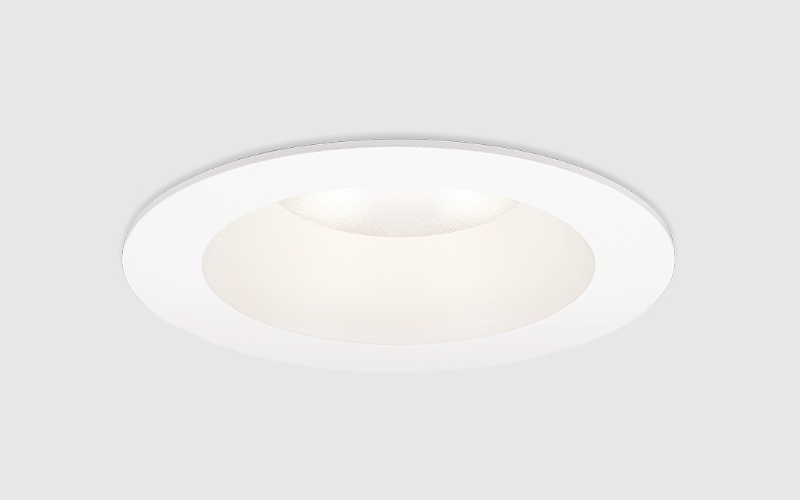

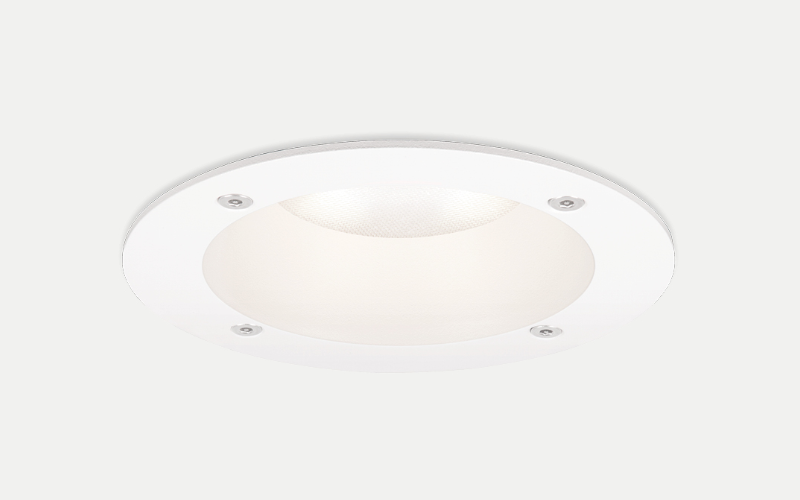

VO4SEALMRIRR. VOILÀ SEAL MRI 4'' Round Downlight for Healthcare Fixed/Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION
Voila 4" Seal MRI Recessed fixtures are crafted from non-ferrous materials for MRI suites in healthcare applications. They feature a remote driver, an IP54-rated gasketed trim for dust and water protection, and an antimicrobial finish. Eight beam angles ensure versatile lighting options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 5 9/16"L: 5 9/16"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3500K3500K Dim to Warm4000K5000KTunable White
- CRI80 90 95
- Watt(Approx)10 W13.8 W13 W19.7 W20 W28 W25 W
- Lumens(Approx)700 Lm920 Lm1200 Lm1532 Lm1981 Lm2078 Lm2800 Lm
- OpticsDirectNarrowMediumFloodWide Flood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETLNSF
- EnvironmentMRIDampHealthcare General
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionIC
- Housing Depth3 7/8 ''3 31/32 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
