VSLIM3P. VIA SLIM 3 PENDANT DIRECT/INDIRECT, DIRECT Linear.
Configure
Add to project
RESOURCES
DESCRIPTION

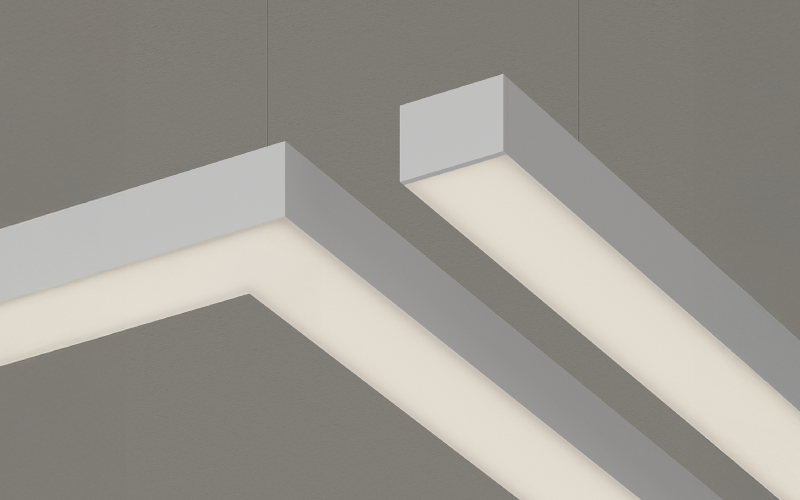

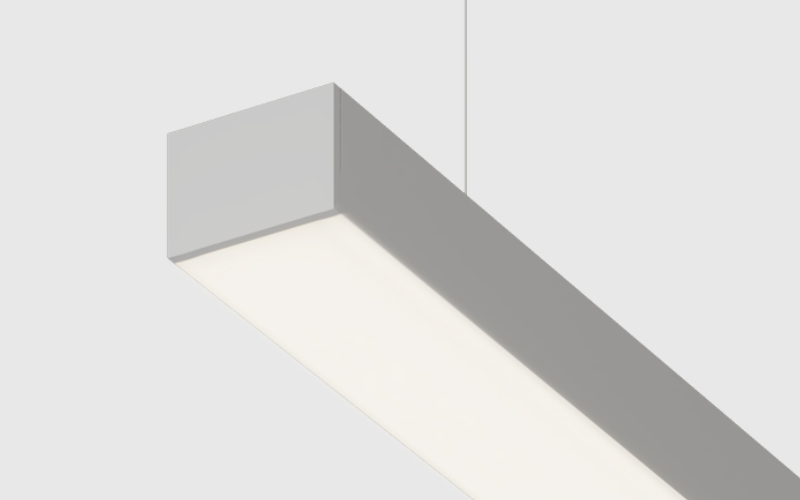

One of the most compact and versatile systems in its class, Via Slim combines minimal design with full-scale performance, featuring one of the slimmest linear profiles—just 2 3/8" tall and available in 2" and 3" widths with integral drivers. Pendant or wall-mounted, with direct-only or direct/indirect distribution, Via Slim expands design possibilities through standalone fixtures, linear runs, and pattern configurations.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"L: Run length (inch)H: 2 3/8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90 95
- Watt(Approx)2.5 W/Ft3.6 W/Ft3.7 W/Ft5.6 W/Ft5.8 W/Ft7.9 W/Ft8 W/Ft
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
- OpticsDirectDirect/IndirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)eldoLED ECO 0-10VeldoLED SOLO 0-10V
- Controls/NetworkLutron®EthernetNetworknLight®ENCELIUM®CasambiWaveLinxIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V120V277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeVSLIM3P
