Mark Architectural Lighting (Acuity Brands Lighting)

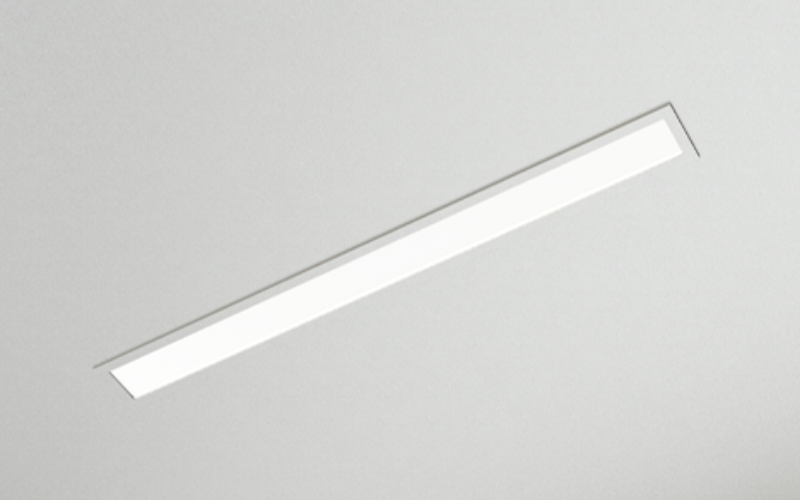

FCL. Full Circle LED Recessed Linear.
Configure
Add to project
RESOURCES
DESCRIPTION
Anything a designer can imagine can be brought to life with Full Circle's super-efficient LED technology.
Straight segments with lengths from 2' to 8' nominal and continuous rows can be configured creating a digitally addressable luminaire that is perfect to emphasize lines and clean contemporary design.
Straight segments with lengths from 2' to 8' nominal and continuous rows can be configured creating a digitally addressable luminaire that is perfect to emphasize lines and clean contemporary design.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/2"3 3/4"L: 2 Ft3 Ft4 Ft5 Ft6 Ft7 Ft8 FtRun length (Ft)
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)3.6 W/Ft5.8 W/Ft8.1 W/Ft10.6 W/Ft
- Lumens(Approx)323 Lm/Ft532 Lm/Ft716 Lm/Ft886 Lm/Ft
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%Non-Dim0-10VDALI
- Controls/Network
- Power/VoltageIntegral120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance65000 h
- CertificatesCSADeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless Drywall
- HousingNew ConstructionChicago Plenum
- Housing Depth4 1/2 ''5 3/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeFCL-LOP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
