Mark Architectural Lighting (Acuity Inc.)

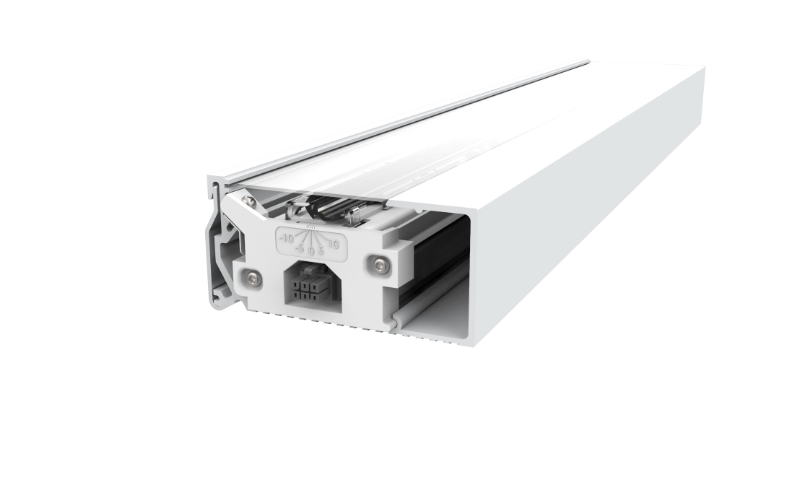

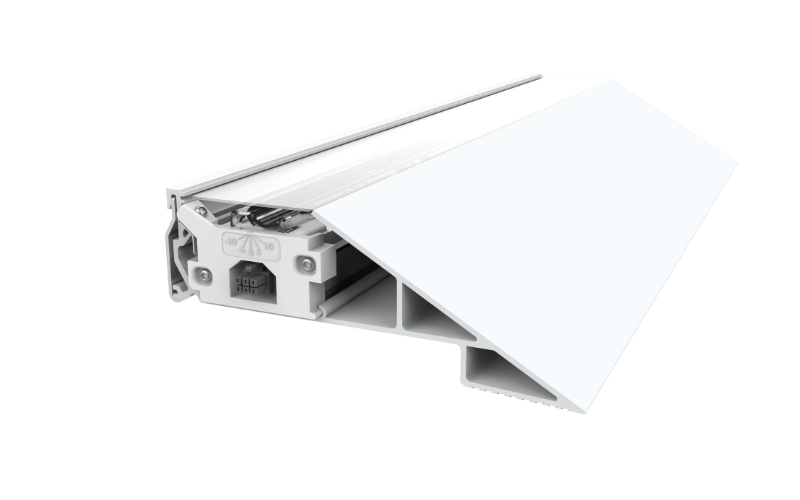

MCV504. MARKCOVE INTEGRATED COVE LUMINAIRE TUNABLE WHITE & WARM DIMMING.
Configure
Add to project
RESOURCES
DESCRIPTION
- Created for integration with the MARKCOVE MCVE architectural integrated cove extrusion profiles (sold separately)
- Available in 2, 3, and 4-foot lengths
- Two distributions: Asymmetric and Symmetric njection molded optics for consistent aesthetic appearance
- Lumen outputs from 400 to 1000 lumens per foot
- Three tunable white temperature range options in 90CRI: Layers (22-50k), Productivity (30-50k), & Rhythm (27-65k)
- Golden range (30k-22k) in 90CRI to replicate the dimming feeling of traditional light sources
- Cable and wire splice box selections available for installation ease
- Optional fixed mount hardware for independent mounting
- Flicker-free dimming to dark (0.1%) powered by eldoLED® drivers & 0-10v control input available with warm dimming
- nLight® enabled system networking with remote Tunable White interface
- Standard in semi-gloss white powder paint finish with optional RAL, or custom color selections
- Total System Integration features a 5-year limited warranty by Acuity Brands covering all components and construction
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 1/16"L: 2 Ft3 Ft4 FtRun length (Ft)H: 1 15/16"
- Light SourceLED
- CCT/Color3000K Dim to WarmTunable White
- CRI90
- Watt(Approx)4.5 W/Ft6.4 W/Ft8.3 W/Ft10.7 W/Ft
- Lumens(Approx)160 Lm/Ft670 Lm/Ft822 Lm/Ft1097 Lm/Ft
- OpticsDirectWide FloodAsymmetric/Wash
- Adjustable
- DimmingDim to <1%0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance60000 h65000 h
- CertificatesCSAMade in USADeclare
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMCV504-TUWH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
