Mark Architectural Lighting (Acuity Brands Lighting)

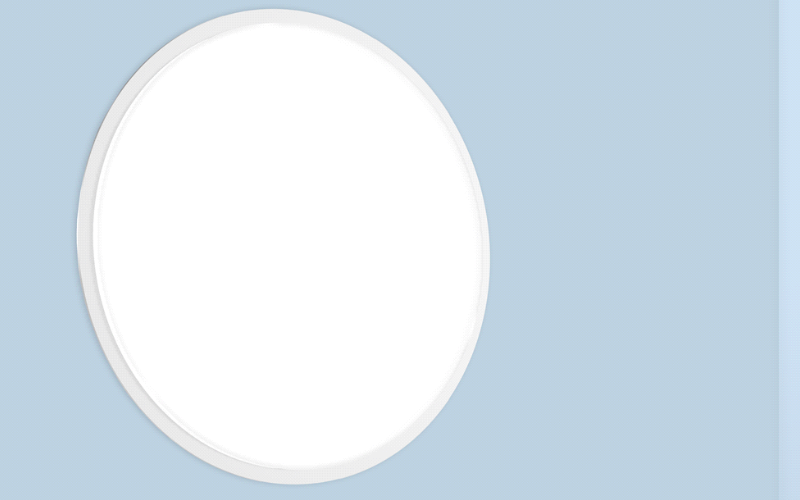

MGLRW. MAGELLAN RECESSED WALL.
Configure
Add to project
RESOURCES
DESCRIPTION
The elegant simplicity of the Magellan luminaire combined with the variety of mounting locations, sizes, lenses, and best-in-class performance brings you the flexibility and utility you have come to expect from MARK Architectural Lighting, all in a well-designed, efficient, and reliable platform.
Magellan wall recessed delivers:
Magellan wall recessed delivers:
- From 600 to 5,000 Lumens (direct)
- Up to 103 LPW (Direct)
- 19 Acoustic color options
- Mounting for drywall applications
- Flat, convex, and concave lens profiles, flush and edge view reveals
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 12"18"24"H: 12"18"24"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)7 W12 W15 W16 W27 W24 W39 W49 W
- Lumens(Approx)617 Lm994 Lm1292 Lm1488 Lm1988 Lm2469 Lm3953 Lm4951 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALILutron EcoSystemDMX
- Controls/NetworknLight®Wireless Dimming
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance38000 h
- CertificatesCSAADARoHSBAA
- EnvironmentAcoustic AbsorptionAntimicrobial FinishDamp
- Mounting TypeWall RecessedDrywall
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMGLRW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
