Mark Architectural Lighting (Acuity Brands Lighting)

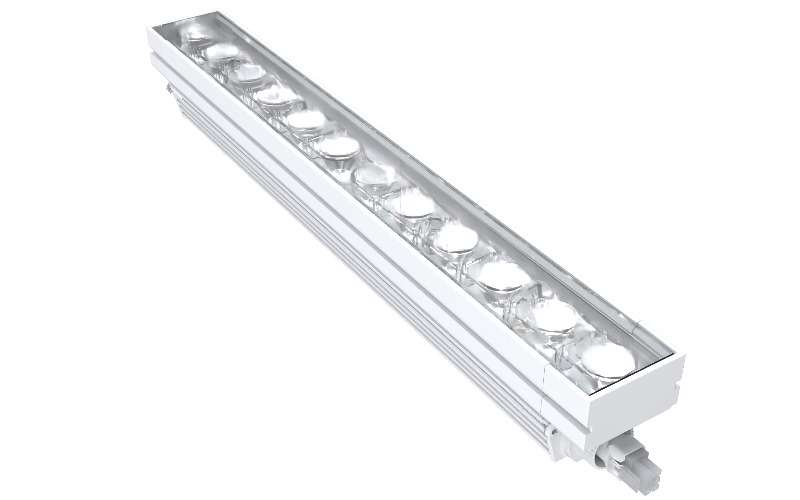

MKS101. MARKLINE 101 STATIC WHITE & COLOR.
Configure
Add to project
RESOURCES
DESCRIPTION
- Small and versatile
- Extruded aluminum construction
- Static White outputs: 250, 400, 600 or 700 lumens per foot
- Static White CCT: 2700, 3000, 3500, 4000 or 5000K

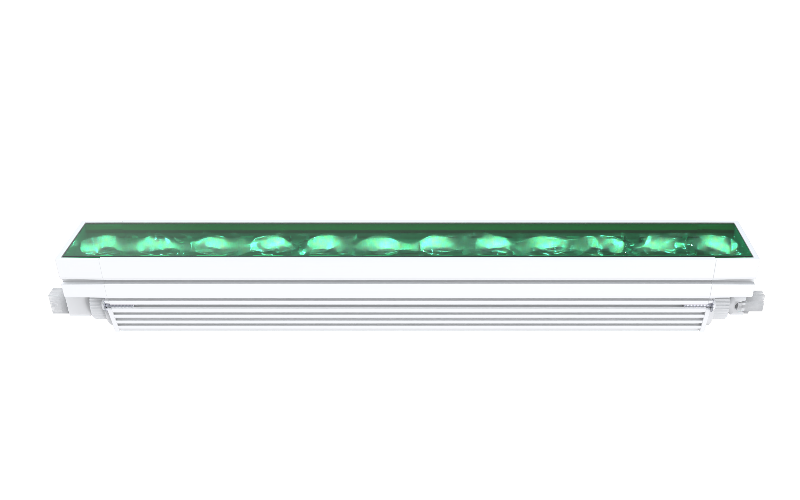

- Static color hues: Red, Green, Blue or Amber
- 6 precise optical distributions: 9x9, 15x30, 10x60, 30x60, 40x60, 60x60 or Wall Wash
- 0-10V, nLight or nLightAIR2
- Flicker free dimming to DARK (0.01%)
- Shielding options: frosted lens, partially frosted lens, linear cross baffle, hex cell louver, glare visor
- Mounting: surface fixed, surface adjustable, cantilever,suspended
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: 1 Ft4 FtRun length (Ft)H: 1 3/4"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000KYellow/AmberRedGreenBlue
- CRI80 90
- Watt(Approx)3.3 W/Ft5 W/Ft6.3 W/Ft8 W/Ft9.3 W/Ft
- Lumens(Approx)254 Lm/Ft422 Lm/Ft529 Lm/Ft613 Lm/Ft724 Lm/Ft
- OpticsDirectGrazingFloodWide FloodAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 1%Dim to <1%ELV/Reverse/Trailing0-10V
- Controls/NetworknLight®
- Power/VoltageIntegralRemoteUNV 120-277V120V347V
- Integral Emergency
- Lumen Maintenance54000 h
- CertificatesCSAMade in USABAA
- EnvironmentDamp
- Mounting TypePendantWall Arm/CantileverSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
