Mark Architectural Lighting (Acuity Brands Lighting)
RUBIK. Rubik LED Recessed – Static White.
Configure
Add to project
RESOURCES
DESCRIPTION

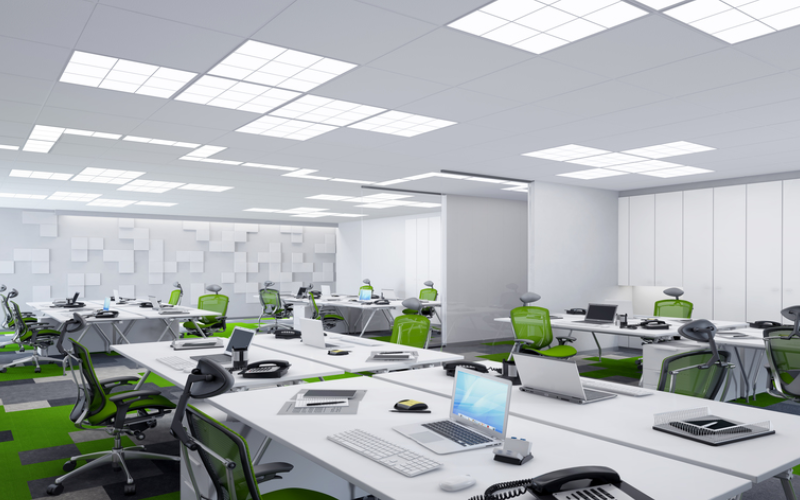

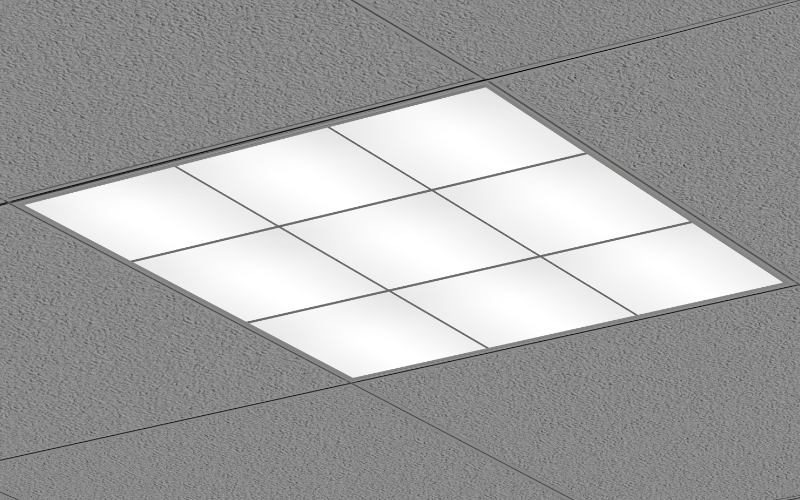

Rubik™ is a revolutionary design vocabulary for the grid. 3-cell, 5-cell, and 9-cell luminaires build traditional or uniquely patterned layouts designed to provide ambient illumination. Rubik Static White is one of four luminous styles offered, along with Tunable White, Grayscale, and Color Accent. All four luminous styles can be combined in a single ceiling design, and all deliver high quality volumetric lighting for practical performance and design impact.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.75"24"L: 24"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)6.7 W10.5 W10.2 W12.6 W18.9 W16.2 W20.6 W29.9 W37.7 W
- Lumens(Approx)800 Lm1324 Lm1200 Lm1492 Lm1950 Lm2428 Lm2504 Lm3659 Lm4646 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VLutron EcoSystem
- Controls/NetworknLight®
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSADLC*DeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRUBIK-STWH
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
