Mark Architectural Lighting (Acuity Brands Lighting)
RUBIK. Rubik LED Recessed – Tunable white.
Configure
Add to project




RESOURCES
DESCRIPTION

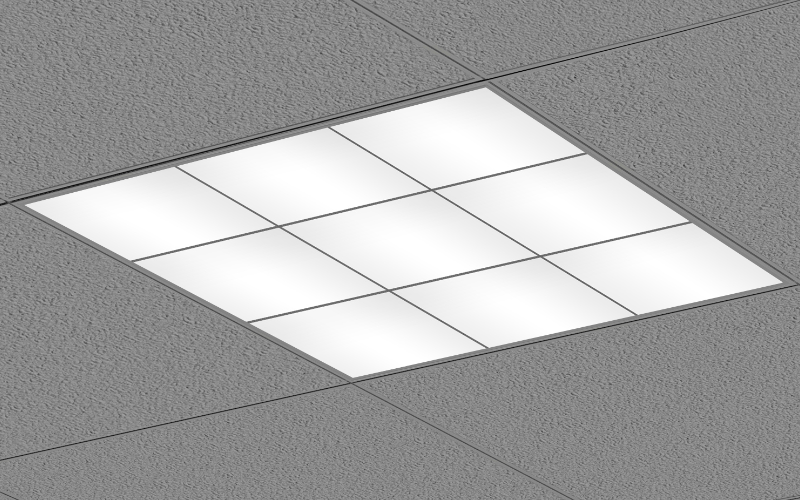

Rubik™ is a revolutionary design vocabulary for the grid. Available in both Productivity and Rhythm ranges, Rubik Tunable White allows the color temperature to be adjusted for optimal occupant performance and experience. 3-cell, 5-cell, and 9-cell luminaires build traditional layouts or unique freeform fields of ambient illumination. Rubik Tunable White is one of four luminous styles offered, along with Static White, Grayscale, and Color Accent. All four luminous styles can be combined in a single ceiling design, and all deliver high quality volumetric lighting for practical performance and design impact. Mainstream Dynamic and nTune™ Technology make it simple with an all-digital control network.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.75"24"L: 24"
- Light SourceLED
- CCT/ColorTunable White
- CRI80 90
- Watt(Approx)7.2 W11.4 W11 W13.7 W20.5 W17.4 W21.6 W31.7 W39.4 W
- Lumens(Approx)732 Lm1208 Lm1120 Lm1380 Lm1884 Lm2218 Lm2355 Lm3460 Lm4413 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to <1%
- Controls/NetworknLight®
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid CeilingSlot T-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
RUBIK-TUWH
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
