Mark Architectural Lighting (Acuity Brands Lighting)

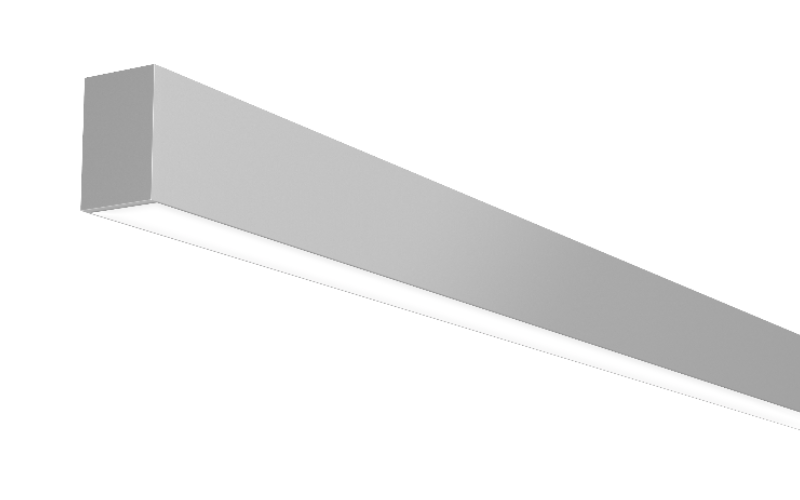

S1LWDP. Slot 1 Direct Wall Patterns.
Configure
Add to project
RESOURCES
DESCRIPTION
- 200 to 1000 lumens per foot
- Up to 117 Lumens per Watt
- Multiple lens treatment options include drop and edge view
- Powered and controlled by Modulus Remote Driver kit that combines all power and control system inputs into a single feed cord.
- Flicker free dimming to dark (0.01%) enabled by Modulus power and control architecture with integrated digital nLight® module for system networking
- Total System Integration features 5-year limited warranty by Acuity Brands, covers all components and construction
- Ability to create custom patterns with L connectors to meet any specification.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 1/2"L: Run length (Ft)H: 2 5/16"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)2.06 W/Ft3.27 W/Ft5.08 W/Ft7.27 W/Ft9.45 W/Ftcustom
- Lumens(Approx)240 Lm/Ft370 Lm/Ft550 Lm/Ft750 Lm/Ft935 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 1%Dim to <1%0-10VDALILutron EcoSystem
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V347V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesUL/CULRoHSDeclare
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
