Mark Architectural Lighting (Acuity Brands Lighting)
S1RD. SLOT 1 RECESSED INTEGRAL DRIVER/
Configure
Add to project
RESOURCES
DESCRIPTION

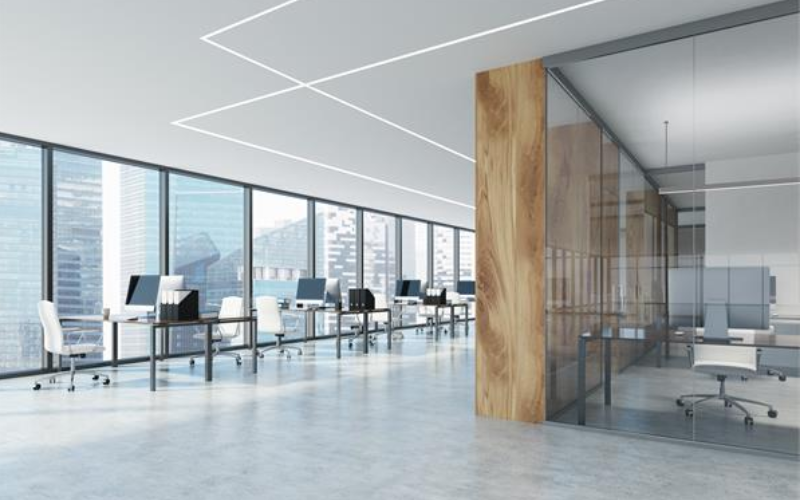

SLOT 1 linear lighting delivers a simple line of light by creating brilliant illumination and exceptional visual comfort in a small form factor. Inspire elegance with clean visuals that complement any architectural design, making a design trend your own. SLOT 1 is the next generation of linear lighting.
Power & Control to suit your needs:
High-efficiency 90 CRI LEDs for exceptional color rendering:
Power & Control to suit your needs:
- Integral driver for added convenience and 0-10v control
- Modulus™ centralized network control offers tailored control options
- Smooth, flicker-free dimming with integral driver and Modulus
High-efficiency 90 CRI LEDs for exceptional color rendering:
- Delivered lumens: 200-1200 LMF (nominal)
- Direct: 109 to 119 LPW
- More efficient than most 80 CRI solutions in the market
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 3/8"L: Run length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3500K4000K5000K
- CRI90
- Watt(Approx)1.76 W/Ft3.28 W/Ft4.94 W/Ft7 W/Ft8.97 W/Ftcustom
- Lumens(Approx)211 Lm/Ft387 Lm/Ft568 Lm/Ft777 Lm/Ft976 Lm/Ftcustom
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSADLC*BAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedTrimless DrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth3 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeS1RD
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
