S2CD. SLOT 2 PERIMETER DYNAMIC RGBW.
Configure
Add to project
RESOURCES
DESCRIPTION

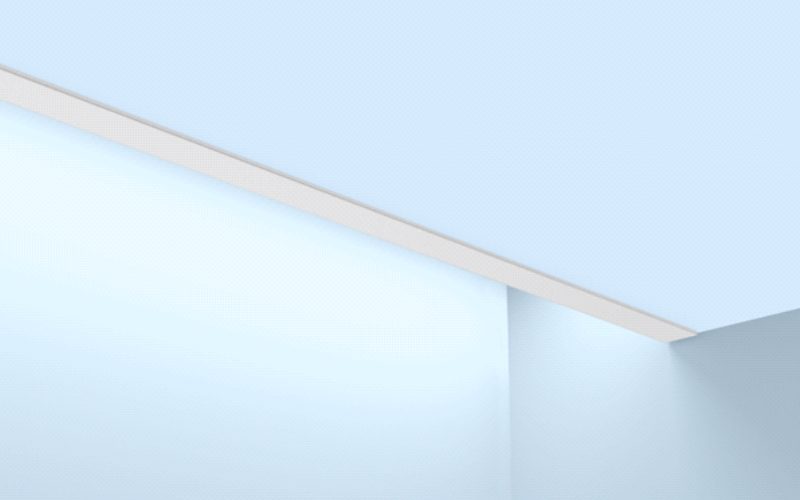

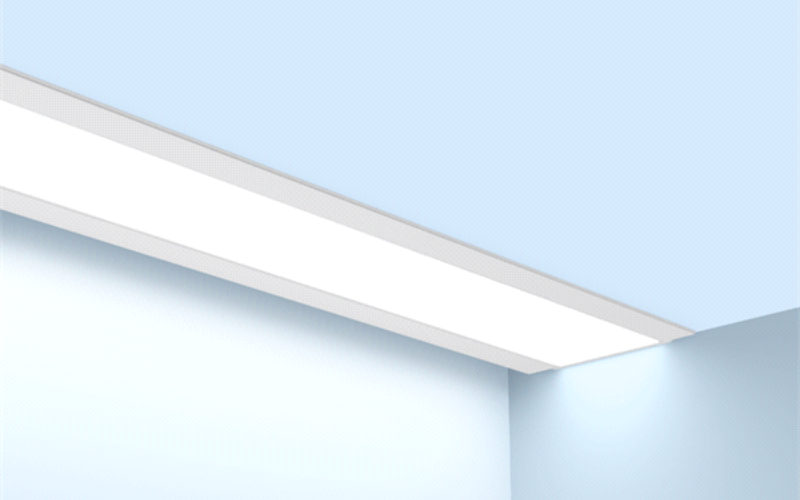

Designed to define the edge with SLOT 2" Perimeter, illuminating walls with intention through seamless lens continuity, field-adjustable lengths, optional telescoping ends for wall-to-wall flexibility, and advanced optical control with multiple regress depths to place light exactly where it’s needed.
Flexibility Across All Applications
Superior Color Quality and Efficiency
Advanced Control Options
Flexibility Across All Applications
- Regress depth options including 0”, 1”, and 2”
- Optional field adjustable end segment allows for +0 to -12" adjustability at installation
- Graze distribution option highlights the wall, asymmetric distribution option illuminates the room from the perimeter
- Continuous lens and louver options
- Mounting options allow for grid or drywall installation
- Versatile end trim options for all installation scenarios
Superior Color Quality and Efficiency
- Outputs up to 1300 lumens per foot, with efficacies up to 117 LPW
- High-efficiency 90 CRI LEDs provide outstanding color rendering
Advanced Control Options
- Enjoy smooth, flicker-free dimming with eldoLED®, paired with your choice of nLight® wired and wireless control systems, including 0-10V, DALI, nTune (TUWH), and DMX (RGBW)
- Emergency and zoning options easily ensure solutions are compliant with local lighting codes
- 57V DC Available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/ColorRGBW
- CRI90
- Watt(Approx)10.38 W/Ft
- Lumens(Approx)604 Lm/Ft
- OpticsDirectGrazingGeneral DiffusedAsymmetric/Wash
- Adjustable
- DimmingDim to <1%DMX
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionChicago Plenum
- Housing Depth6 3/8 ''
