Mark Architectural Lighting (Acuity Brands Lighting)

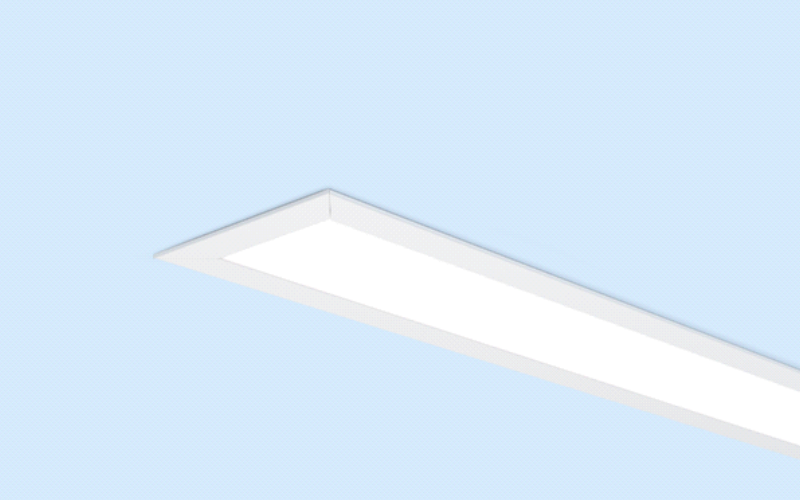

S2RD. SLOT 2 RECESSED TUNABLE WHITE.
Configure
Add to project
RESOURCES
DESCRIPTION
Integrated into the architecture, SLOT 2” Recessed continues the family’s legacy of uninterrupted lines of light, complete optical control, and a minimalist aesthetic that elevates linear lighting design.
Flexibility Across All Applications
Superior Color Quality and Efficiency
Advanced Control Options
Flexibility Across All Applications
- Wall wash, wall graze, batwing, and asymmetric distributions tailor lighting to suit any application

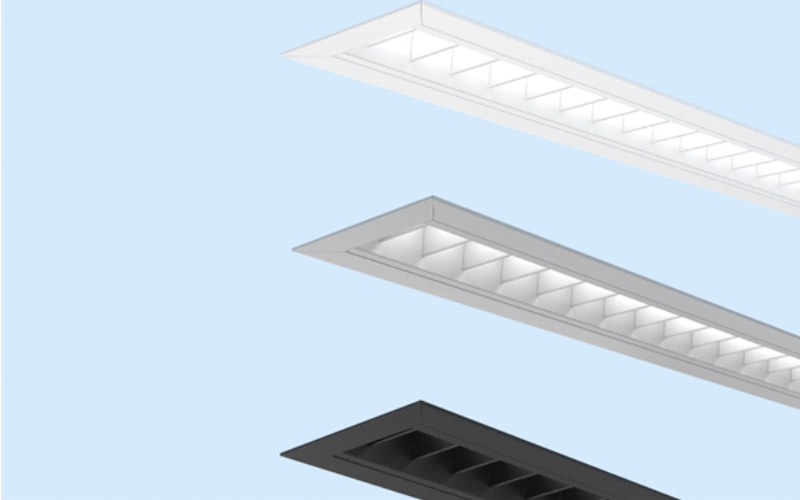

- Multiple lens styles include continuous lens, drop lens (0.5"–1.5"), and louvers, for the perfect aesthetic and performance

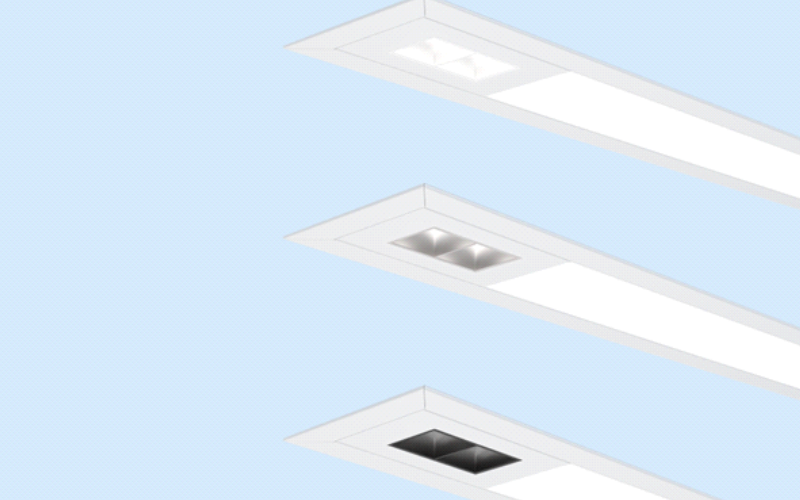

- Optional integrated downlights offer multiple beam angles and a selection of reflector colors, adding accent and flexibility to your design
- Mounting options allow for grid, drywall, or install from below installation
Superior Color Quality and Efficiency
- Outputs up to 1300 lumens per foot, with efficacies up to 117 LPW
- High-efficiency 90 CRI LEDs provide outstanding color rendering
- Dynamic Tunable White and RGBW available
Advanced Control Options
- Enjoy smooth, flicker-free dimming with eldoLED®, paired with your choice of nLight® wired and wireless control systems, including 0-10V, DALI, nTune (TUWH), and DMX (RGBW)
- Emergency and zoning options easily ensure solutions are compliant with local lighting codes
- 57V DC Available
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 1/8"L: Run length (Ft)
- Light SourceLED
- CCT/ColorTunable White
- CRI90
- Watt(Approx)2.5 W/Ft3.39 W/Ft5.39 W/Ft7.31 W/Ft9.22 W/Ft11.49 W/Ft12.62 W/Ftcustom
- Lumens(Approx)287 Lm/Ft383 Lm/Ft580 Lm/Ft780 Lm/Ft979 Lm/Ft1137 Lm/Ft1216 Lm/Ftcustom
- OpticsDirectGrazingGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to <1%
- Controls/NetworknLight®Integral Sensor
- Power/VoltageIntegralUNV 120-277V120V277V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesCSABAA
- EnvironmentAntimicrobial FinishDampWet
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingChicago Plenum
- Housing Depth4 3/8 ''
